RIGID-IMC FITTINGS

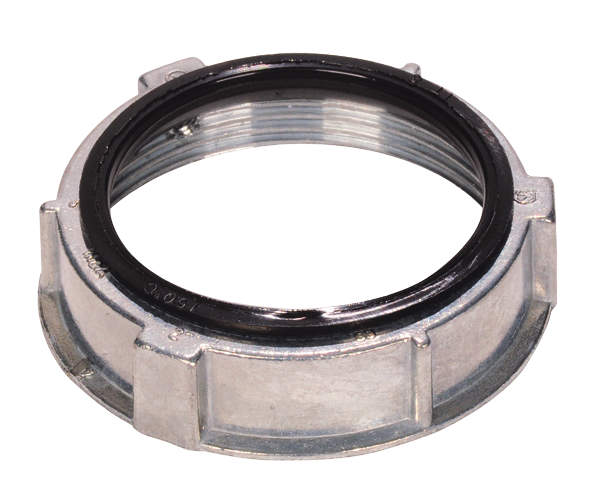

ZINC INSULATED BUSHINGS

APPLICATION

Used with a locknut to terminate threaded rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Liner rated at 150°C.

FEATURES

  • The plastic liner won’t chip, crack, swell or shrink. It resists corrosion, chemicals, and temperature extremes.

STANDARD MATERIALS

Zinc Die Cast

UL LISTED

E198258

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
1206Z 1/2” 100 1000 12062
1207Z 3/4” 100 500 12072
1208Z 1” 50 500 12082
1209Z 1-1/4” 25 250 12092
1210Z 1-1/2” 25 250 12102
1211Z 2” - 25 12112
1212Z 2-1/2” - 25 12122
1213Z 3” - 25 12132
1214Z 3-1/2” - 25 12142
1215Z 4” - 25 12152
