RIGID-IMC FITTINGS

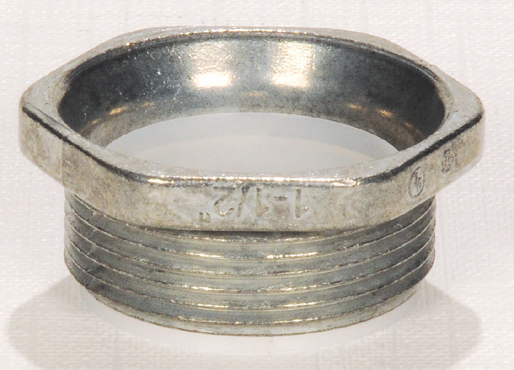

ZINC CONDUIT NIPPLES

APPLICATION

Used through knockout to connect box to conduit coupling. Used with a locknut to connect two boxes side by side or back to back. Used with a locknut to connect fixture housing to continuous runs.

FEATURES

  • Available with insulated Throat.
  • With rigid conduit threads (NPS)

STANDARD MATERIALS

Zinc Die Cast

UL LISTED

E198258

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
90ZT 1/2” 100 1000 19004
91ZT 3/4” 50 500 19104
92ZT 1” 25 250 19204
93ZT 1-1/4” 25 250 19304
94ZT 1-1/2” 25 100 19404
95ZT 2” 10 40 19504
96ZT 2-1/2” 10 40 19604
97ZT 3” 10 40 19704
98ZT 3-1/2” 10 40 19804
99ZT 4” 5 20 19904
