AC-MC-FLEX FITTINGS
SEPCO CARRIES A LARGE INVENTORY OF AC-MC-FLEX FITTINGS!
Including big bite-saddle type connectors and couplings, quicklock type connectors, and malleable iron or zinc cable connectors. We also offer zinc two screw take-all connectors. Get what you need with SEPCO’s unparalleled service and delivery.

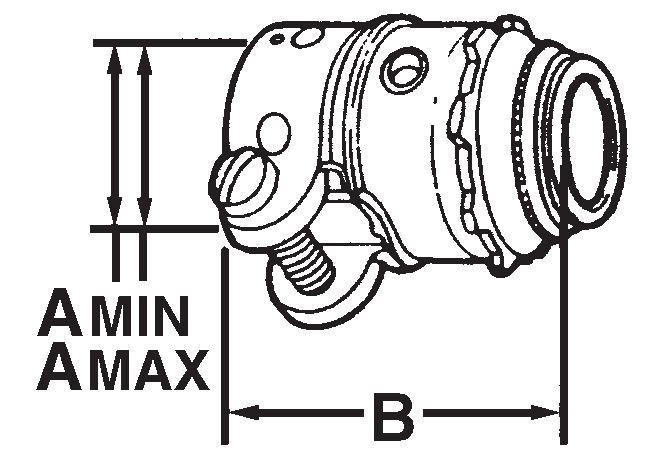

ZINC 90° CABLE CONNECTORS
Back
C40ZT
Trade Size | 2” |
---|---|
Dim A Min. | 1.400 |
Dim A Max. | 2.400 |
Dim B | 6.050 |
Unit Pack | - |
Master Pack | 5 |
Lbs. / 100 Pcs. | 46 |
UPC | 34067 |
Competitor Part Number | 856A, 810-DCI2, 1742DC, 91020, IL-110-6, XC-896, 106i |
APPLICATION
Used with a locknut to terminate steel or aluminum flexible metal conduit and armored cable to enclosure to form a 90° bend.
FEATURES
Assembled with die cast locknut and tri-combo screws
STANDARD MATERIALS
Zinc Die Cast
UL LISTED
E198258
CSA File No. LR57925
