RIGID-IMC FITTINGS

WATERTIGHT CONDUIT HUBS

Back
image description
image description

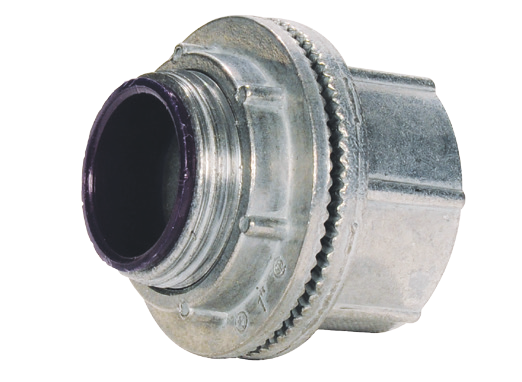

TWH20

Trade Size 3/4”

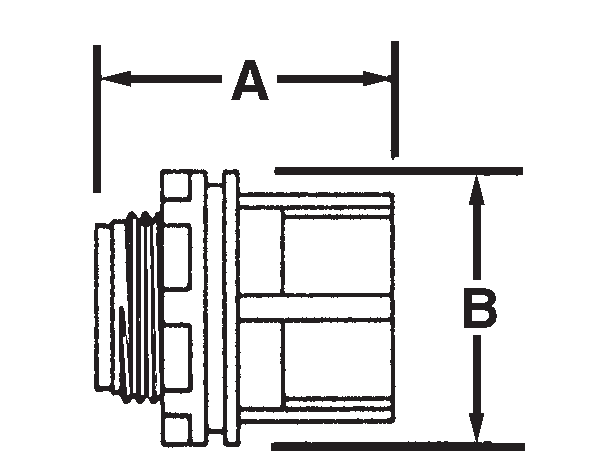

Dim A 1.570
Dim B 1.430
Unit Pack 25
Master Pack 250
Lbs. / 100 Pcs. 22
UPC 70020
Competitor Part Number UB-75D, WH2, 152-DC, ST2, 91632, WH-2, WTH75, LWH-75, CHM-75DT, 1703, 1703, H075-SC, H075-TB, 202

APPLICATION

To secure threaded rigid service entrance conduit to box or enclosure. Insulated throat rated 105° C. BUNA-N sealing ring completely encircles knockout to prevent contaminants from entering enclosure.

FEATURES

  • Assembled with 105°C rated flame retardant Lexan throat insulator and BUNA-N sealing ring.
  • UL Listed and CSA Certified for use in wet locations.
  • Meets NEMA sealing requirements for Type 2, 3, 3R, 4, 4X, 5, 12, and 13 enclosures.
  • Certified for use in hazardous locations, Class II, Groups E, F, G and Class III

STANDARD MATERIALS

Zinc Die Cast

UL LISTED

E198258

ico

CSA CERTIFIED

C5F17

ico
