EMT FITTINGS

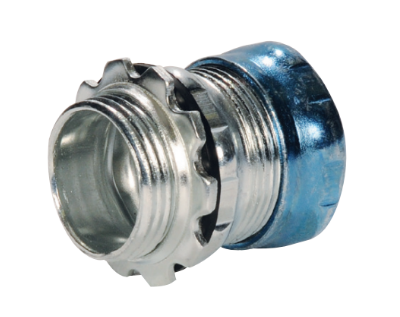

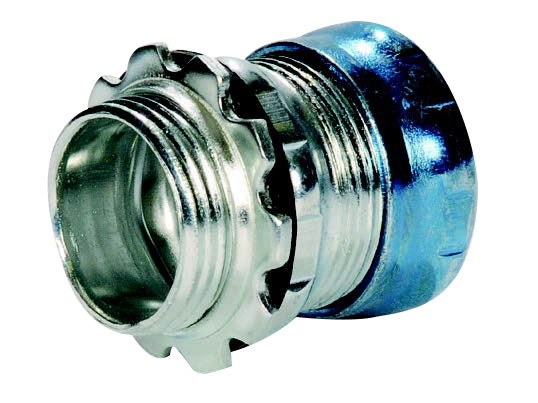

STEEL RAINTIGHT EMT COMPRESSION CONNECTORS

APPLICATION

Compression style connector with internal sealing ring and knockout gasket to create a raintight seal when connecting E.M.T. to box or enclosure.

FEATURES

  • The only steel compression fitting, UL Listed Raintight
  • Unique raised bump design affords fast, positive locking of compression nuts
  • Male Hub Threads-NPSM
  • Steel locknuts
  • Heavy steel walls
  • Raintight
  • Concrete tight

STANDARD MATERIALS

Steel

STANDARD FINISH

Zinc Plated

UL LISTED

E308075

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
S1010RT 1/2” 50 500 62201
S1011RT 3/4” 25 250 62202
S1012RT 1” 50 200 62203
S1013RT 1-1/4” 25 100 62204
S1014RT 1-1/2” 10 40 62205
S1015RT 2” 5 20 62206
S1015DRT 2-1/2” - 12 62311
S1015ERT 3” - 12 62312
S1015E1RT 3-1/2” - 6 62313
S1015FRT 4” - 6 62314
Download Specification Sheet
