AC-MC-FLEX FITTINGS
SEPCO CARRIES A LARGE INVENTORY OF AC-MC-FLEX FITTINGS!
Including big bite-saddle type connectors and couplings, quicklock type connectors, and malleable iron or zinc cable connectors. We also offer zinc two screw take-all connectors. Get what you need with SEPCO’s unparalleled service and delivery.

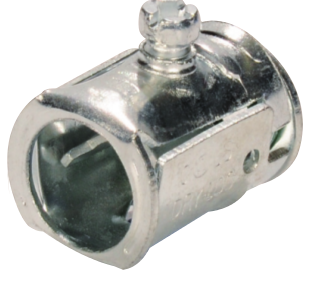

QUICKLOCK TYPE CONNECTORS WITH INSULATED THROAT
Back
QL-50
Trade Size | 1/2” SINGLE |
---|---|

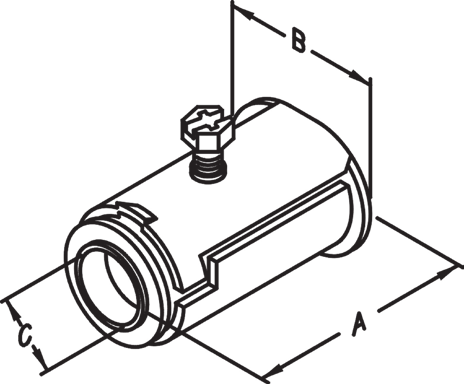

Dim A | 1.438 |
Dim B | 0.438 |
Dim C | 0.438 |
Unit Pack | 50 |
Master Pack | 500 |
Lbs. / 100 Pcs. | 8 |
UPC | 90001 |
Competitor Part Number | MC-50, AMC-50, QLK50S, AMC-50, 65705B, QL50, MAFC-50, AMC-50, 2800, 2800, XC-730, AMC1 |
APPLICATION
Used to connect MC, AC, and Flex Cable to box or enclosure
FEATURES
- No locknut required
- Single-unit or duplex construction with captive clamp
- Connects 50 MC, AC and Flex RW cable sizes with just three fittings
- Easy to install. Just tilt, insert and snap down
- Single unit construction eliminates loose component parts; integral green plastic insulated throat bushing provides maximum protection for wire installation
- Concrete tight when taped and used with PVC jacketed cord
- Accepts 2 cables of each size listed
STANDARD MATERIALS
Tubular Steel
STANDARD FINISH
Zinc Plated
UL LISTED
E309514
