HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

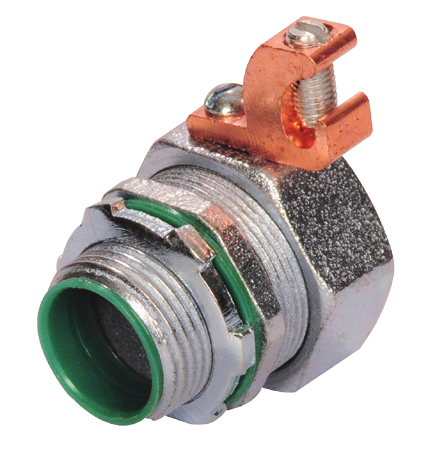

MALLEABLE IRON/MECHANICAL GALVANIZED STRAIGHT LIQUIDTIGHT CONNECTORS WITH COPPER LUGS

APPLICATION

Connects conduit and terminates bonding conductor run externally across liquidtight conduit.

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius
  • Furnished with Insulated throat, steel locknut, and sealing ring
  • Liquidtight/Raintight/Oiltight
  • Suitable for grounding & wet locations
  • Long ferrule prevents pullout and tight bend conduit ‘pop-out’
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I

STANDARD MATERIALS

Malleable Iron/Steel Ferrule/Copper Grounding Lug

STANDARD FINISH

Sizes 1/2” – 4” – Mechanical Galvanized
Sizes 5” & 6” – Hot Dipped Galvanized

UL LISTED

E93683

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
SLT27CLTMG 1/2” 25 250 50503
SLT28CLTMG 3/4” 10 100 50506
SLT29CLTMG 1” 5 50 50509
SLT30CLTMG 1-1/4” 5 50 50512
SLT31CLTMG 1-1/2” 10 50 50515
SLT32CLTMG 2” 5 25 50518
SLT33CLTMG 2-1/2” 1 10 50521
SLT34CLTMG 3” 1 10 50524
SLT60CLTMG 3-1/2” 1 10 50527
SLT61CLTMG 4” 1 5 50530
*SLT62CLTG 5” - 1 50531
*SLT63CLTG 6” - 1 50532
