HOT DIPPED GALVANIZED FITTINGS

SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS

We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.

Contact SEPCO today.

MALLEABLE IRON/HOT DIPPED GALVANIZED 90° LIQUIDTIGHT CONNECTORS

Back
image description
image description

SLT38TMG

Trade Size 1-1/4”
KO Size 1-1/4”
I.D. 1.330
O.D. 1.605

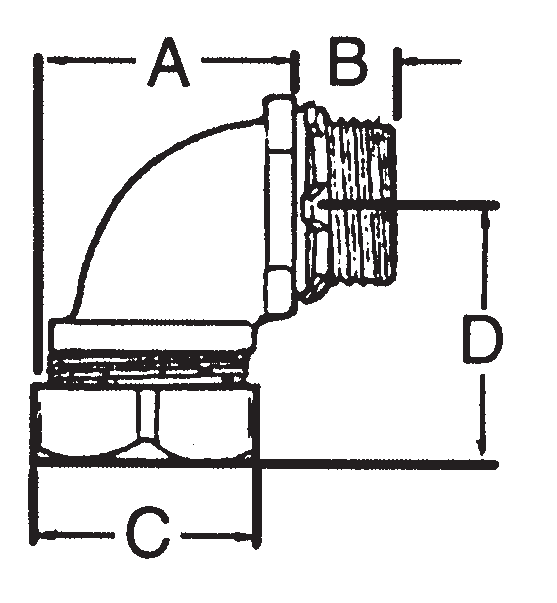

DIM A 2.37
DIM B 0.66
DIM C 2.25
DIM D 1.94
Unit Pack -
Master Pack 10
Lbs. / 100 Pcs. 98
UPC 16420
Competitor Part Number 4Q-9125TG

APPLICATION

To secure, ground seal Liquidtight Flexible Metal conduit, to boxes and enclosures

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius
  • Furnished with an insulated throat with steel locknut and sealing ring
  • Liquidtight/Raintight/Oiltight
  • Suitable for wet locations
  • Long ferrule prevents pullout and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502 4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1 1/2” under NEC 35I-I

STANDARD MATERIALS

Malleable Iron/Steel Ferrule

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated

UL LISTED

E198258
