HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

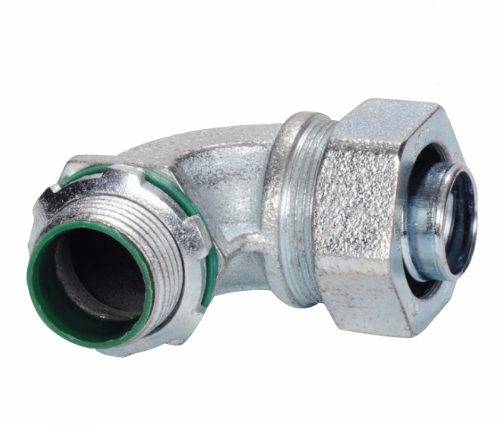

MALLEABLE IRON/MECHANICAL GALVANIZED 90° LIQUIDTIGHT CONNECTORS

APPLICATION

To secure, ground seal Liquidtight Flexible Metal conduit, to boxes and enclosures

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius
  • Furnished with an insulated throat with steel locknut and sealing ring
  • Liquidtight/Raintight/Oiltight
  • Suitable for wet locations
  • Long ferrule prevents pullout and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502 4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1 1/2” under NEC 35I-I

STANDARD MATERIALS

Malleable Iron/Steel Ferrule

STANDARD FINISH

Sizes 1/2” – 2” – Mechanical Galvanized
Sizes 2 1/2” – 4” – Hot Dipped Galvanized

UL LISTED

E198258

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
SLT35TMG 1/2” 10 100 16405
SLT36TMG 3/4” 10 100 16410
SLT37TMG 1” 5 50 16415
SLT38TMG 1-1/4” - 10 16420
SLT39TMG 1-1/2” - 10 16425
SLT40TMG 2” - 5 16430
*SLT65TG 2-1/2” - 1 16435
*SLT66TG 3” - 1 16440
*SLT67TG 3-1/2” - 1 16445
*SLT68TG 4” - 1 16450
Download Specification Sheet
