HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

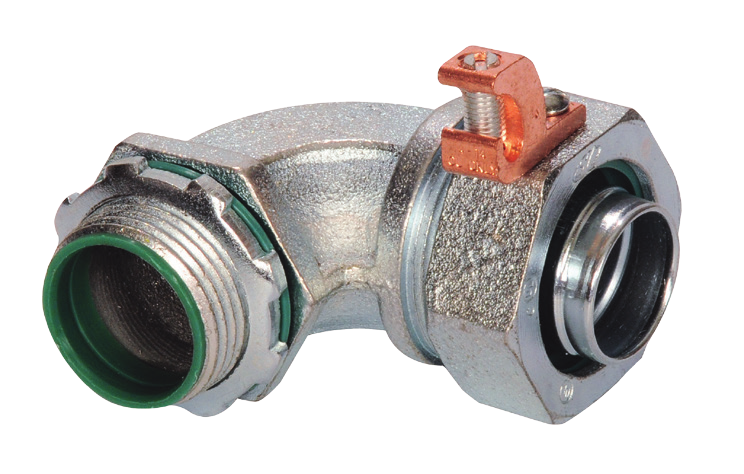

MALLEABLE IRON/MECHANICAL GALVANIZED 90° LIQUIDTIGHT CONNECTORS WITH COPPER LUGS

APPLICATION

Connects conduit and terminates bonding conductor run externally across liquidtight conduit

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius
  • Furnished with Insulated throat, steel locknut, and sealing ring
  • Liquidtight/Raintight/Oiltight
  • Suitable for grounding and wet locations
  • Long ferrule prevents pullout and tight bend conduit ‘pop-out’
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501 4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I

STANDARD MATERIALS

Malleable Iron/Steel Ferrule/Copper Grounding Lug

STANDARD FINISH

Sizes 1/2” – 2” – Mechanical Galvanized
Sizes 2 1/2” – 4” – Hot Dipped Galvanized

UL LISTED

E93683

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
SLT35CLTMG 1/2” 10 100 16405
SLT36CLTMG 3/4” 10 100 16410
SLT37CLTMG 1” 5 50 16415
SLT38CLTMG 1-1/4” - 10 16420
SLT39CLTMG 1-1/2” - 10 16425
SLT40CLTMG 2” - 5 16430
*SLT65CLTG 2-1/2” - 1 16435
*SLT66CLTG 3” - 1 16440
*SLT67CLTG 3-1/2” - 1 16445
*SLT68CLTG 4” - 1 16450
