HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

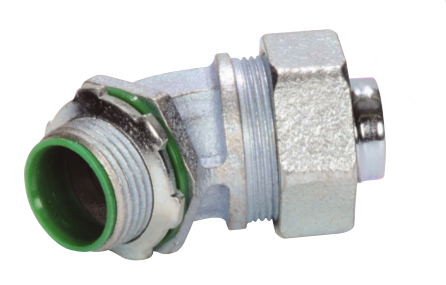

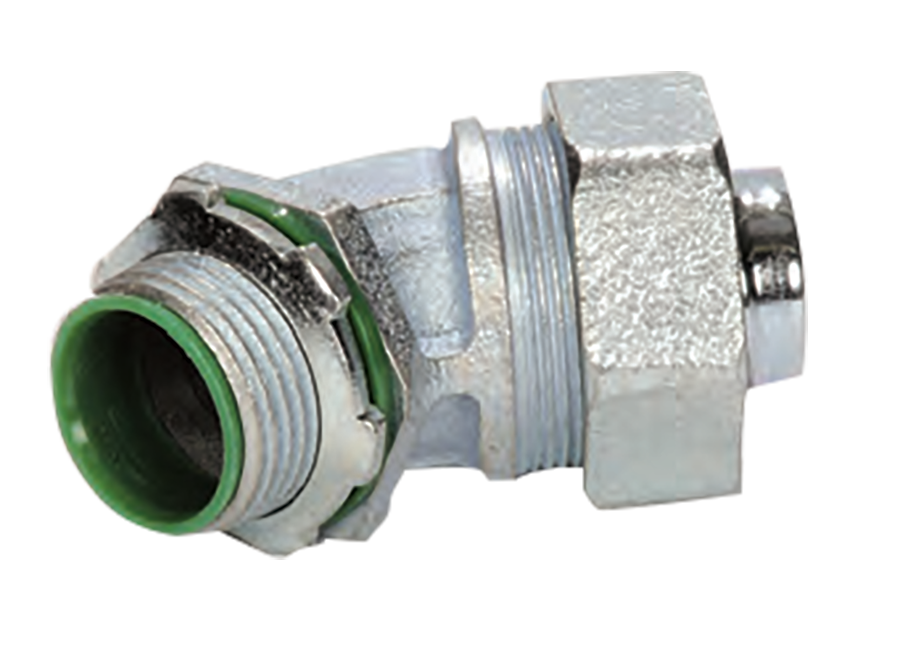

MALLEABLE IRON/MECHANICAL GALVANIZED 45° LIQUIDTIGHT CONNECTORS

APPLICATION

To secure, ground and seal Liquidtight Flexible Metal conduit to boxes and enclosures.

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius
  • Furnished with an insulated throat with steel locknut and sealing ring
  • Liquidtight/R intight/Oiltight
  • Suitable for wet locations
  • Long ferrule prevents pullout and tight bend conduit “pop out”
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502 4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I

STANDARD MATERIALS

Malleable Iron/Steel Ferrule

STANDARD FINISH

Sizes 1/2” – 2” – Mechanical Galvanized
Sizes 2 1/2” – 4” – Hot Dipped Galvanized

UL LISTED

E198258

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
SLT35-45TMG 1/2” 10 100 16407
SLT36-45TMG 3/4” 10 100 16412
SLT37-45TMG 1” 5 50 16417
SLT38-45TMG 1-1/4” - 10 16422
SLT39-45TMG 1-1/2” - 10 16427
SLT40-45TMG 2” - 5 16432
*SLT65-45TG 2-1/2” - 1 16437
*SLT66-45TG 3” - 1 16442
*SLT67-45TG 3-1/2” - 1 16447
*SLT68-45TG 4” - 1 16452
Download Specification Sheet
