HOT DIPPED GALVANIZED FITTINGS

SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS

We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.

Contact SEPCO today.

MALLEABLE IRON/HOT DIPPED GALVANIZED 45° LIQUIDTIGHT CONNECTORS WITH COPPER LUGS

Back
image description
image description
image description

SLT65-45CLTG

Trade Size 2-1/2”
Lug Size #1/0-#8
I.D. 2.341
O.D. 2.797

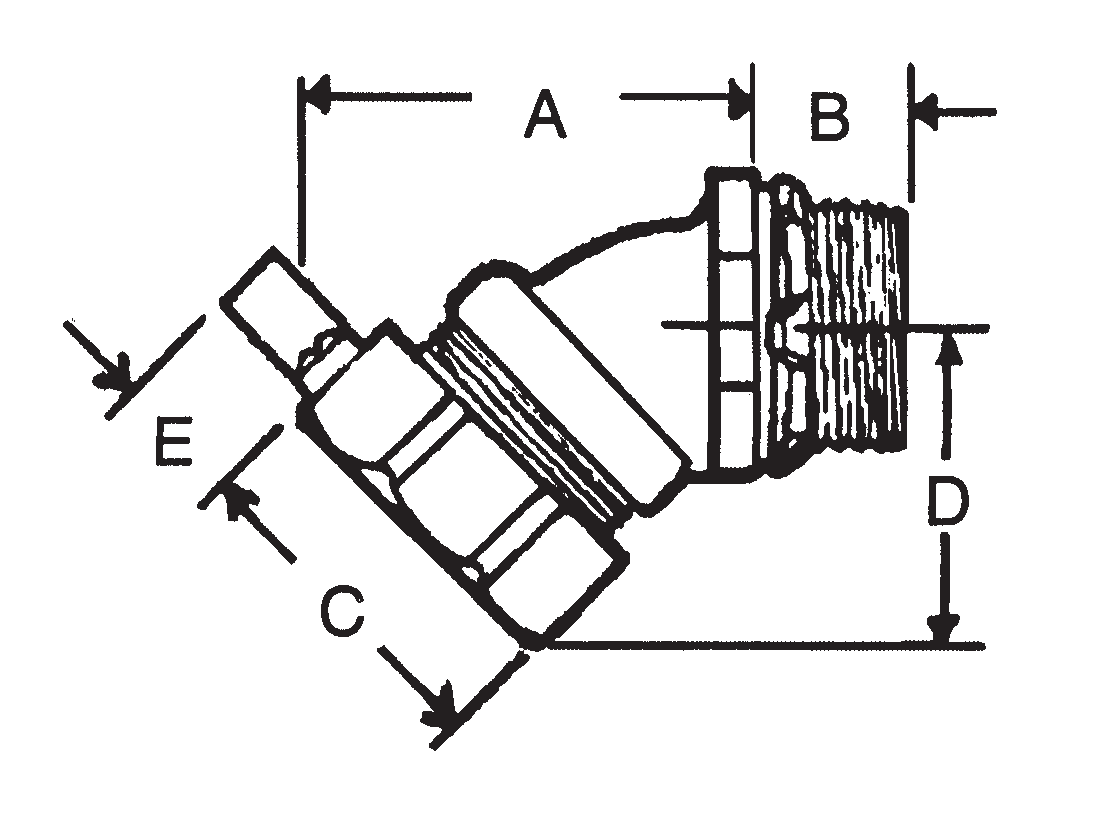

DIM A 6.67
DIM B 1.01
DIM C 4.01
DIM D 4.41
DIM E 1.13
Unit Pack -
Master Pack 1
Lbs. / 100 Pcs. 373
UPC 50587
Competitor Part Number -

APPLICATION

Connects conduit and terminates bonding conductor run externally across liquidtight conduit.

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius
  • Furnished with Insulated throat, steel locknut, and sealing ring
  • Liquidtight/Raintight/Oiltight
  • Suitable for grounding
  • Long ferrule prevents pull-out and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings
    are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I.

STANDARD MATERIALS

Malleable Iron/Steel Ferrule/Copper Grounding Lug

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated

UL LISTED

E93683
