HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

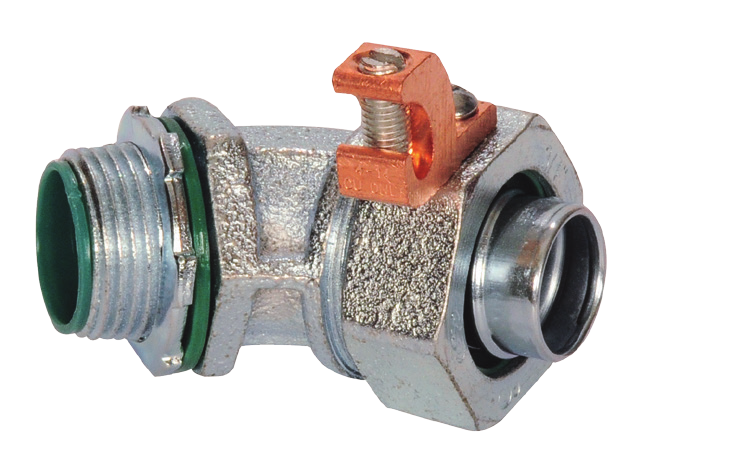

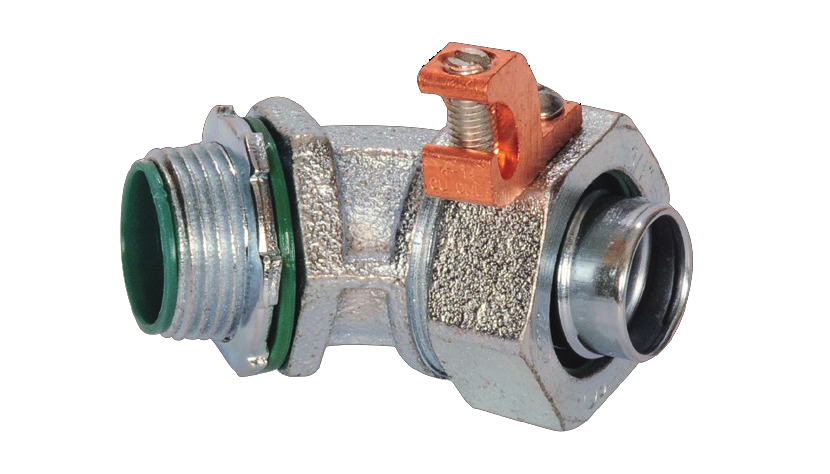

MALLEABLE IRON/MECHANICAL GALVANIZED 45° LIQUIDTIGHT CONNECTORS WITH COPPER LUGS

APPLICATION

Connects conduit and terminates bonding conductor run externally across liquidtight conduit.

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius
  • Furnished with Insulated throat, steel locknut, and sealing ring
  • Liquidtight/Raintight/Oiltight
  • Suitable for grounding
  • Long ferrule prevents pull-out and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings
    are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I.

STANDARD MATERIALS

Malleable Iron/Steel Ferrule/Copper Grounding Lug

STANDARD FINISH

Sizes 1/2” – 2” – Mechanical Galvanized
Sizes 2 1/2” – 4” – Hot Dipped Galvanized

UL LISTED

E93683

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
SLT35-45CLTMG 1/2” 10 100 50569
SLT36-45CLTMG 3/4” 10 100 50572
SLT37-45CLTMG 1” 5 50 50575
SLT38-45CLTMG 1-1/4” - 10 50578
SLT39-45CLTMG 1-1/2” - 10 50581
SLT40-45CLTMG 2” - 5 50584
*SLT65-45CLTG 2-1/2” - 1 50587
*SLT66-45CLTG 3” - 1 50590
*SLT67-45CLTG 3-1/2” - 1 50593
*SLT68-45CLTG 4” - 1 50596
Download Specification Sheet
