HOT DIPPED GALVANIZED FITTINGS

SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS

We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.

Contact SEPCO today.

MALLEABLE IRON/HOT DIPPED GALVANIZED WATERTIGHT CONDUIT HUBS

Back
image description
image description

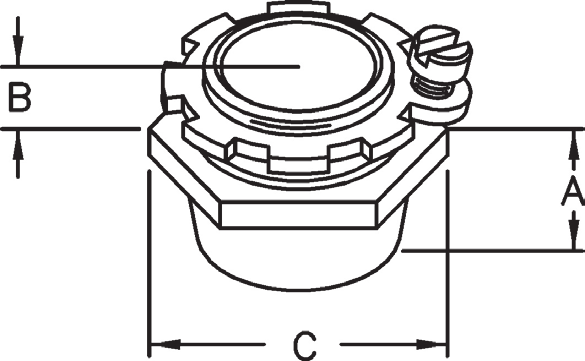

CHM150G

Trade Size 1-1/2”
Dim A 1.250
Dim B 0.813
Dim C 3.125
Unit Pack 2
Master Pack 20
Lbs. / 100 Pcs. 64
UPC 70914
Competitor Part Number MHUB5HDG, CH-150TG,

APPLICATION

General Purpose Fitting. Insulated Throat form with Bonding Screw.

FEATURES

  • Male thread type
  • Tapered female thread for rigid conduit and IMC
  • Recessed O ring seal assures watertight and dust tight connections.
  • Insulated throat and bonding locknut is suitable for service entrance application.
  • Suitable for use in hazardous locations as follows: Class I, Div. 2 Class II, Div. I, 2 Class III, Div. I, 2 Per NEC 501-4 (b), 502-4 (a), 503-3 (a)

MATERIAL/FINISH

Malleable Iron

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated

OPTIONAL FINISH

For Malleable Iron / Zinc Plated, please remove suffix ‘G’ from Hot Dipped Galvanized Catalog Number and see page 72.

UL LISTED

E198258
