HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

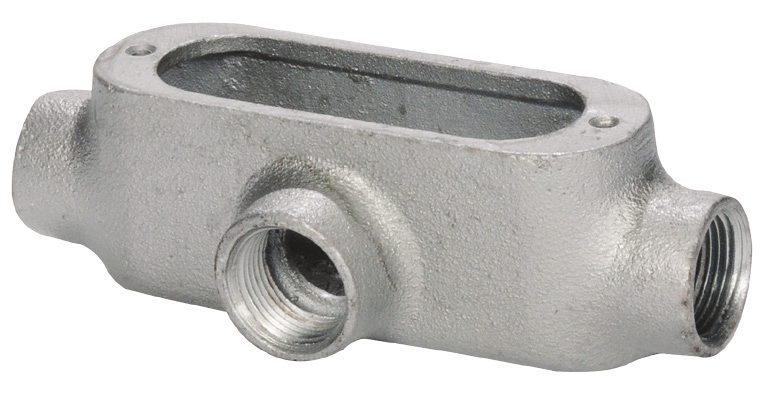

MALLEABLE IRON/HOT DIPPED GALVANIZED THREADED CONDUIT BODIES

APPLICATION

To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

FEATURES

  • Exclusive built-in rollers facilitate cable pulling
    from sizes 1 1/4”- 4”
  • Tapered threaded hubs (NPT)
  • Flat back design for easy mounting close to
    walls
  • Suitable for use in concrete

STANDARD MATERIALS

Malleable Iron

OPTIONAL FINISH

For Malleable Iron / Zinc Plated, please remove suffix ‘G’ from Hot Dipped Galvanized Catalog Number and see page 37.

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
T1G 1/2” 10 50 10182
T2G 3/4” 10 50 10183
T3G 1” 5 25 10184
T4G 1-1/4” 10 10185
T5G 1-1/2” 10 10186
T6G 2” 5 10187
T7G 2-1/2” 1 10204
T8G 3” 1 10205
T9G 3-1/2” 1 10206
T10G 4” 1 10207
Download Specification Sheet
