HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

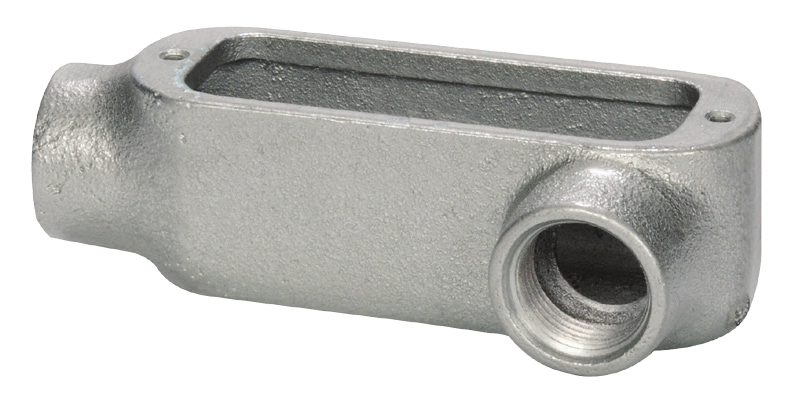

MALLEABLE IRON/HOT DIPPED GALVANIZED THREADED CONDUIT BODIES

APPLICATION

To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

FEATURES

  • Exclusive built-in rollers facilitate cable pulling
    from sizes 1 1/4”- 4”
  • Tapered threaded hubs (NPT)
  • Flat back design for easy mounting close to
    walls
  • Suitable for use in concrete

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated

UL LISTED

E198259

ico

OPTIONAL FINISH

For Malleable Iron / Zinc Plated, please remove

suffix ‘G’ from Hot Dipped Galvanized Catalog

Number and see page 36.

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
LL1G 1/2” 10 50 10170
LL2G 3/4” 10 50 10171
LL3G 1” 5 25 10172
LL4G 1-1/4” 10 10173
LL5G 1-1/2” 10 10174
LL6G 2” 5 10175
LL7G 2-1/2” 1 10196
LL8G 3” 1 10197
LL9G 3-1/2” 1 10198
LL10G 4” 1 10199
Download Specification Sheet
