HOT DIPPED GALVANIZED FITTINGS

SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS

We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.

Contact SEPCO today.

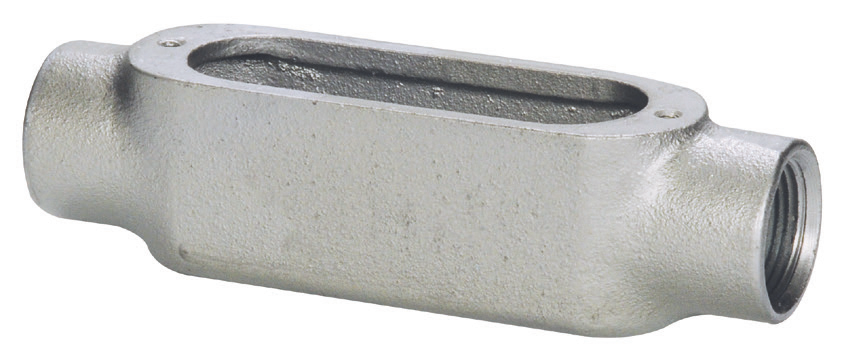

MALLEABLE IRON/HOT DIPPED GALVANIZED THREADED CONDUIT BODIES

Back
image description
image description

C8G

Trade Size3”
Dim A15.125
Dim B4.313
Dim C4.750
Max Wire Size3 #250 MCM
Vol. Cu. IN.170.00
Unit Pack
Master Pack5
Lbs. / 100 Pcs.1437
UPC10189
Competitor Part NumberC300MHDG, C-300G, C8MHDG

APPLICATION

To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

FEATURES

  • Exclusive built in rollers facilitate cable pulling from sizes 1 1/4”- 4”
  • Tapered threaded hubs (NPT)
  • Flat back design for easy mounting close to walls
  • Suitable for use in concrete

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated

UL LISTED

E198259
