HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

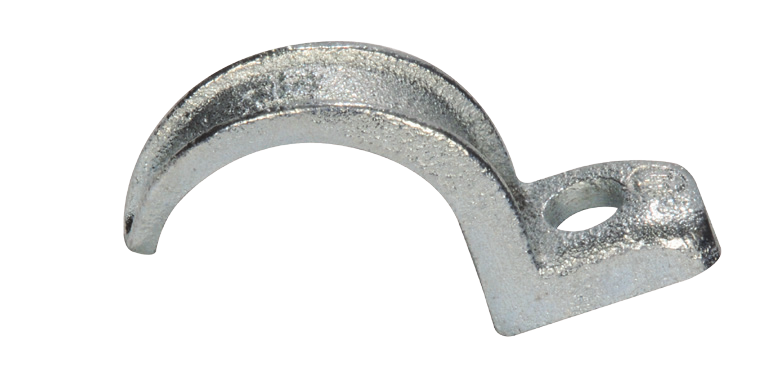

MALLEABLE IRON/HOT DIPPED GALVANIZED ONE-HOLE STRAPS

APPLICATION

Click-on type one-hole straps for rigid conduit or IMC. Provides support for the conduits, as required by the National Electrical Code.

FEATURES

Heavy Duty Casting

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated

OPTIONAL FINISH

For Malleable Iron / Zinc Plated, please remove suffix ‘G’ from Hot Dipped Galvanized Catalog Number and see page 86.

UL LISTED

E198338

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
132G 1/2” 100 1000 70200
133G 3/4” 100 1000 70201
134G 1” 50 500 70202
135G 1-1/4” - 100 70203
136G 1-1/2” - 50 70204
137G 2” - 50 70205
138G 2-1/2” - 25 70206
139G 3” - 10 70207
141G 3-1/2” - 10 70208
148G 4” - 10 70209
150G 4” - 5 70210
152G 6” - 5 70211
