HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

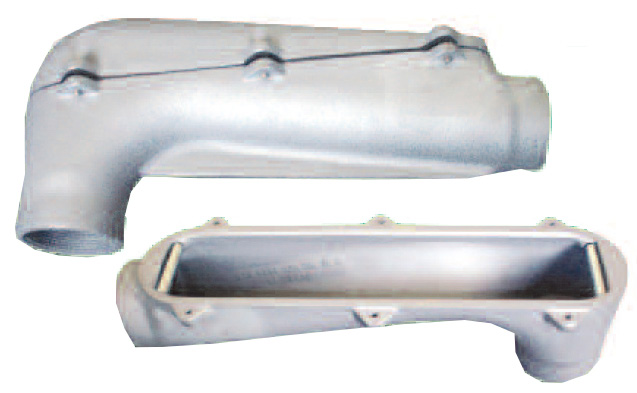

MALLEABLE IRON/HOT DIPPED GALVANIZED MOGULS WITH COVER, GASKET & ROLLERS

APPLICATION

  • Larger body size facilitates pulling of large and heavy conductors. Specially designed raised cast covers provide additional wiring area.
  • SEPCO Moguls are used for pulling straight, 45° or 90° angle turns and/or making taps and splices.

FEATURES

  • Exclusive built-in rollers facilitate cable pulling from sizes 1 1/4” – 4”.
  • Smooth, rounded integral bushing in each hub protects conductor insulation.
  • Accurately taped, tapered threads for tight, rigid joints and ground continuity.
  • Covers have captive stainless steel screws to speed installation, prevent ‘freezing’ of screws.
  • Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2).

STANDARD MATERIALS

Bodies and Covers: Malleable Iron

Gaskets: Neoprene

Screws: Stainless Steel

STANDARD FINISH

Bodies and Covers: Hot-Dipped Galvanized

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
MLB100G 1” 1 10047
MLB125G 1-1/4” 1 10048
MLB150G 1-1/2” 1 10049
MLB200G 2” 1 10050
MLB250G 2-1/2” 1 10055
MLB300G 3” 1 10052
MLB350G 3-1/2” 1 10053
MLB400G 4” 1 10054
