HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

MALLEABLE IRON/HOT DIPPED GALVANIZED MOGULS WITH COVER, GASKET & ROLLERS

Back
image description
image description

MC350G

Trade Size 3-1/2”
Max Wire Size 3 #900 MCM
Vol. Cu. IN. 830.00
Unit Pack
Master Pack 1
Lbs. / 100 Pcs. 5464
UPC 10045

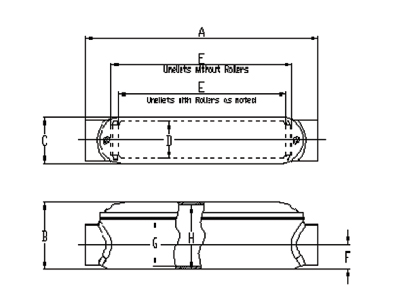

Dim A 31.57
Dim B 7.05
Dim C 5.72
Dim D 4.57
Dim E 24.98
Dim F 2.50
Dim G 4.72
Dim H 6.50
Number of cover holes 4
Competitor Part Number C350-M, BC9HDG, MOC-9MWR, C8X-350M, BC9-TB,

APPLICATION

  • Larger body size facilitates pulling of large and
    heavy conductors. Specially designed raised
    cast covers provide additional wiring area.
  • SEPCO Moguls are used for pulling straight,
    45° or 90° angle turns and/or making taps and
    splices.

FEATURES

  • Exclusive built-in rollers facilitate cable pulling
    from sizes 1 1/4” – 4”.
  • Smooth, rounded integral bushing in each hub
    protects conductor insulation.
  • Accurately taped, tapered threads for tight, rigid
    joints and ground continuity.
  • Covers have captive stainless steel screws to
    speed installation, prevent ‘freezing’ of screws.
  • Length Requirement: distance between
    centerline of each hub bushing (conduit stop)
    exceeds eight times the trade diameter of the
    conduit per NEC 314.28(A)(2).

STANDARD MATERIALS

Bodies and Covers: Malleable Iron

Gaskets: Neoprene

Screws: Stainless Steel

STANDARD FINISH

Bodies and Covers: Hot-Dipped Galvanized

UL LISTED

E198259
