HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

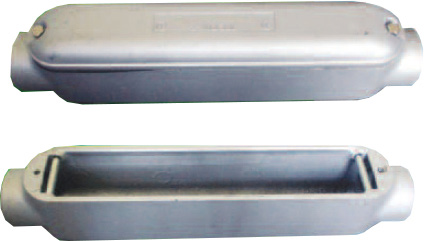

MALLEABLE IRON/HOT DIPPED GALVANIZED MOGULS WITH COVER, GASKET & ROLLERS

APPLICATION

  • Larger body size facilitates pulling of large and
    heavy conductors. Specially designed raised
    cast covers provide additional wiring area.
  • SEPCO Moguls are used for pulling straight,
    45° or 90° angle turns and/or making taps and
    splices.

FEATURES

  • Exclusive built-in rollers facilitate cable pulling
    from sizes 1 1/4” – 4”.
  • Smooth, rounded integral bushing in each hub
    protects conductor insulation.
  • Accurately taped, tapered threads for tight, rigid
    joints and ground continuity.
  • Covers have captive stainless steel screws to
    speed installation, prevent ‘freezing’ of screws.
  • Length Requirement: distance between
    centerline of each hub bushing (conduit stop)
    exceeds eight times the trade diameter of the
    conduit per NEC 314.28(A)(2).

STANDARD MATERIALS

Bodies and Covers: Malleable Iron

Gaskets: Neoprene

Screws: Stainless Steel

STANDARD FINISH

Bodies and Covers: Hot-Dipped Galvanized

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC

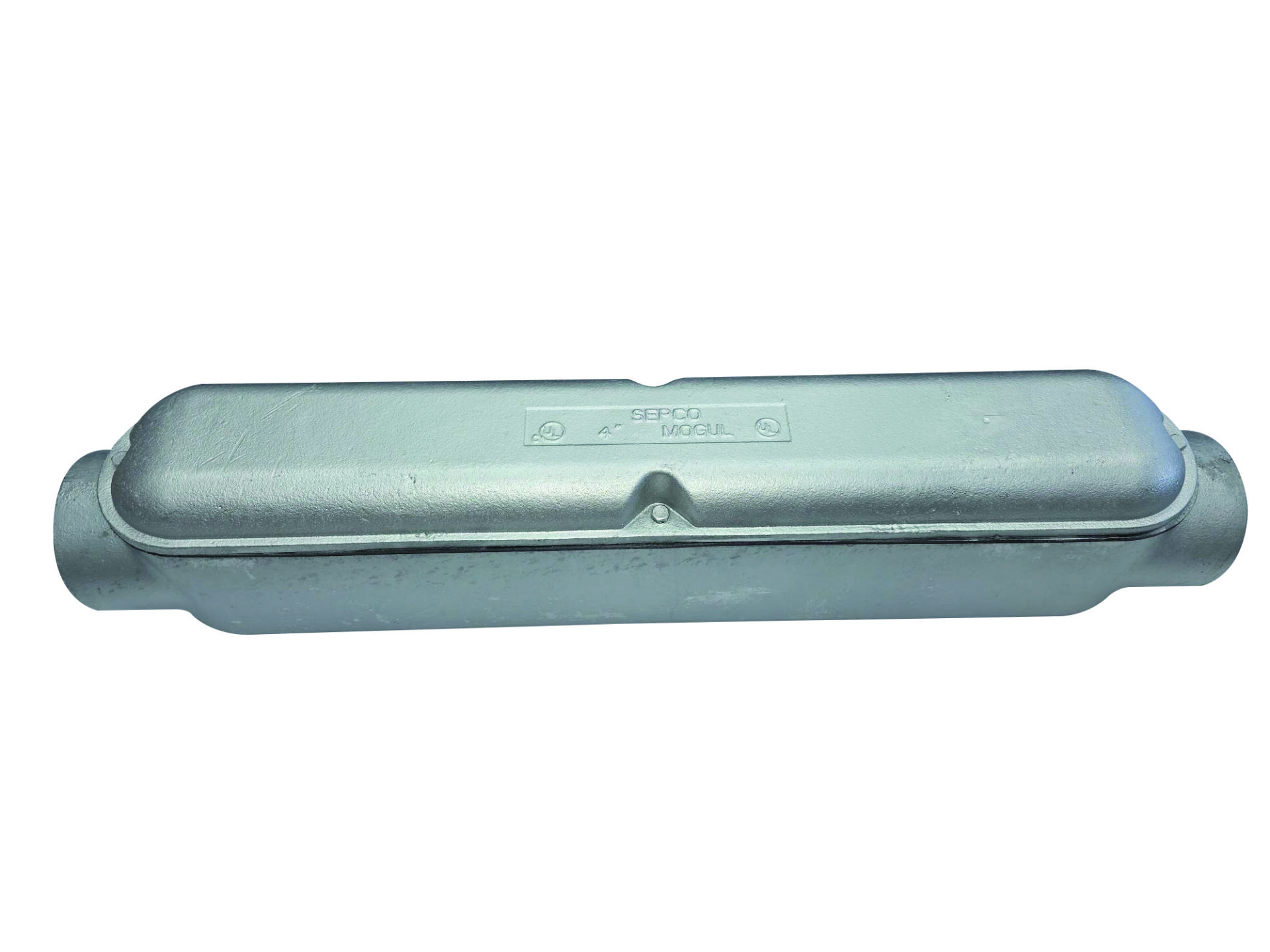

MC100G 1” 1 10039
MC125G 1-1/4” 1 10040
MC150G 1-1/2” 1 10041
MC200G 2” 1 10042
MC250G 2-1/2” 1 10043
MC300G 3” 1 10044
MC350G 3-1/2” 1 10045
MC400G 4” 1 10046
