HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

MALLEABLE IRON/HOT DIPPED GALVANIZED MOGULS WITH COVER AND GASKET

Back
image description
image description
image description

MT100G

Trade Size 1”
Max Wire Size 3 #4 AWG
Vol. Cu. IN. 31
Unit Pack -
Master Pack 1
Lbs. / 100 Pcs. 187
UPC 10154

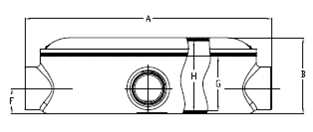

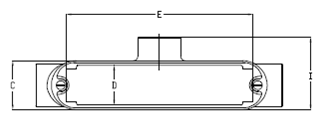

Dim A 9.88
Dim B 2.80
Dim C 2.36
Dim D 1.85
Dim E 6.61
Dim F 0.93
Dim G 1.84
Dim H 2.48
Dim I 3.27
Number of cover holes 2
Competitor Part Number T100-M, BT3HDG, MOT-3M, T8X-100MG, BT3-TB

APPLICATION

  • Larger body size facilitates pulling of large and
    heavy conductors. Specially designed raised
    cast covers provide additional wiring area.
  • SEPCO Moguls are used for pulling straight,
    45° or 90° angle turns and/or making taps and
    splices.

FEATURES

  • Smooth, rounded integral bushing in each hub
    protects conductor insulation.
  • Accurately taped, tapered threads for tight, rigid
    joints and ground continuity.
  • Covers have captive stainless steel screws to
    speed installation, prevent ‘freezing’ of screws.
  • Length Requirement: distance between
    centerline of each hub bushing (conduit stop)
    exceeds six times the trade diameter of the
    conduit per NEC 314.28(A)(2).

STANDARD MATERIALS

Bodies and Covers: Malleable Iron
Gaskets: Neoprene
Screws: Stainless Steel

STANDARD FINISH

Bodies and Covers: Hot-Dipped Galvanized

UL LISTED

E198259
