HOT DIPPED / MECHANICAL GALVANIZED FITTINGS

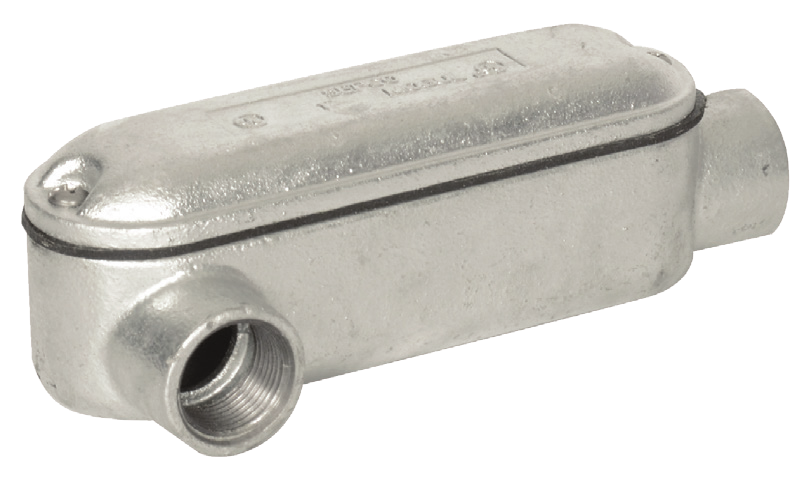

MALLEABLE IRON/HOT DIPPED GALVANIZED MOGULS WITH COVER AND GASKET

APPLICATION

  • Larger body size facilitates pulling of large and
    heavy conductors. Specially designed raised
    cast covers provide additional wiring area.
  • SEPCO Moguls are used for pulling straight,
    45° or 90° angle turns and/or making taps and
    splices.

FEATURES

  • Smooth, rounded integral bushing in each hub
    protects conductor insulation.
  • Accurately taped, tapered threads for tight, rigid
    joints and ground continuity.
  • Covers have captive stainless steel screws to
    speed installation, prevent ‘freezing’ of screws.
  • Length Requirement: distance between
    centerline of each hub bushing (conduit stop)
    exceeds six times the trade diameter of the
    conduit per NEC 314.28(A)(2).

STANDARD MATERIALS

Bodies and Covers: Malleable Iron
Gaskets: Neoprene
Screws: Stainless Steel

STANDARD FINISH

Bodies and Covers: Hot-Dipped Galvanized

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
MLR100G 1” - 1 10150
MLR125G 1-1/4” - 1 10151
MLR150G 1-1/2” - 1 10152
MLR200G 2” - 1 10153
