HOT DIPPED GALVANIZED FITTINGS

SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS

We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.

Contact SEPCO today.

MALLEABLE IRON/HOT DIPPED GALVANIZED INSULATED GROUNDING BUSHINGS

Back
image description
image description

26BI4OLG

Trade Size 2-1/2”
GROUNDING LUG CAPACITY #6 - #250MCM

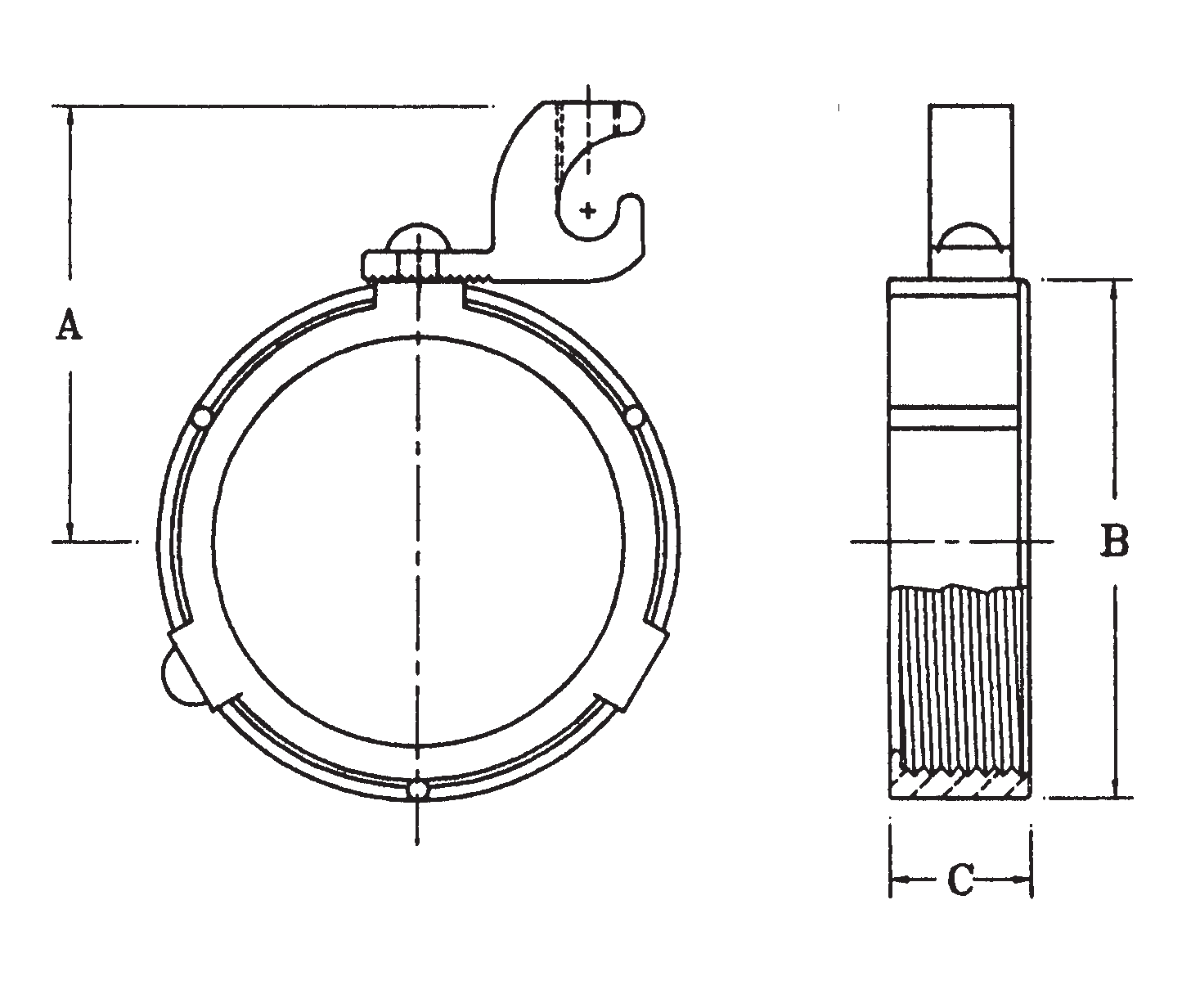

Dim A 3.47
Dim B 3.33
Dim C 1.10
Unit Pack -
Master Pack 10
Lbs. / 100 Pcs. 70
UPC 10028
Competitor Part Number -

APPLICATION

Used with a locknut to terminate threaded rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Liner rated at 150°C.

FEATURES

  • The plastic liner won’t chip, crack, swell or shrink. It resists corrosion, chemicals, and temperature extremes.
  • Set-screw provided with each fitting locks bushing in any desired position.
  • UL Listed for use with Copper o Aluminum Grounding Conductors.

STANDARD MATERIALS

Malleable Iron/Open side tin plated aluminum lug.

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated
Optional Lug: Available with copper lug; use suffix C instead of L. Example 21BI4CG.

UL LISTED

E93683

ico

OPTIONAL FINISH

For Malleable Iron / Zinc Plated, please remove suffix ‘G’ from Hot Dipped Galvanized Catalog Number and see page 57.
