HOT DIPPED GALVANIZED FITTINGS

SEPCO MAINTAINS A LARGE SUPPLY OF MALLEABLE IRON, HOT DIPPED GALVANIZED FITTINGS

We are the only industry manufacturer offering a specializing plating process called Double Coate, which adds zinc plating after hot dip galvanizing, offering extra protection for your electrical fittings. From moguls, expansion fittings, liquidtight connectors, three-piece couplings, one-hole snaps, conduit bodies, hubs, and grounding bushings, SEPCO supplies reliable parts when and where you need them.

Contact SEPCO today.

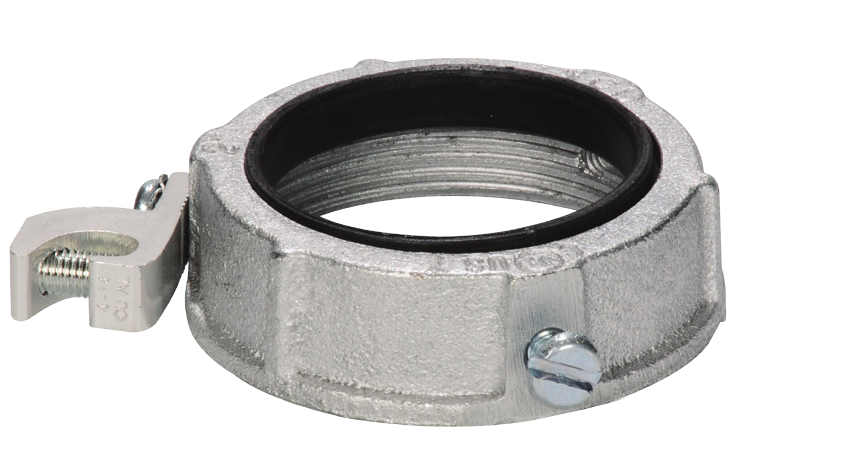

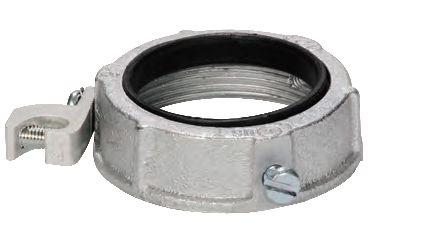

MALLEABLE IRON/HOT DIPPED GALVANIZED INSULATED GROUNDING BUSHINGS

APPLICATION

Used with a locknut to terminate threaded rigid and IMC conduit to a box or enclosure and to provide a smooth pulling surface. Thermoplastic liner prevents damage to wire insulation. Liner rated at 150°C.

FEATURES

  • The plastic liner won’t chip, crack, swell or shrink. It resists corrosion, chemicals, and temperature extremes.
  • Set-screw provided with each fitting locks bushing in any desired position.
  • UL Listed for use with Copper o Aluminum Grounding Conductors.

STANDARD MATERIALS

Malleable Iron/Open side tin plated aluminum lug.

STANDARD FINISH

Hot Dipped Galvanized/Zinc Plated
Optional Lug: Available with copper lug; use suffix C instead of L. Example 21BI4CG.

UL LISTED

E93683

ico

OPTIONAL FINISH

For Malleable Iron / Zinc Plated, please remove suffix ‘G’ from Hot Dipped Galvanized Catalog Number and see page 57.

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
20BI4LG 1/2” 100 1000 10021
21BI4LG 3/4” 50 500 10022
22BI4LG 1” 25 250 10023
23BI4LG 1-1/4” 25 250 10024
24BI4LG 1-1/2” 25 250 10025
25BI4LG 2” 25 250 10026
26BIOLG 2-1/2” - 10 10027
26BI4OLG 2-1/2” - 10 10028
27BIOLG 3” - 10 10029
27BI4OLG 3” - 10 10030
28BIOLG 3-1/2” - 10 10031
28BI4OLG 3-1/2” - 10 10032
29BIOLG 4” - 10 10033
29BI4OLG 4” - 10 10034
30BI4OLG 5” - 10 10036
31BI4OLG 6” - 10 10038
Download Specification Sheet
