RIGID-IMC FITTINGS

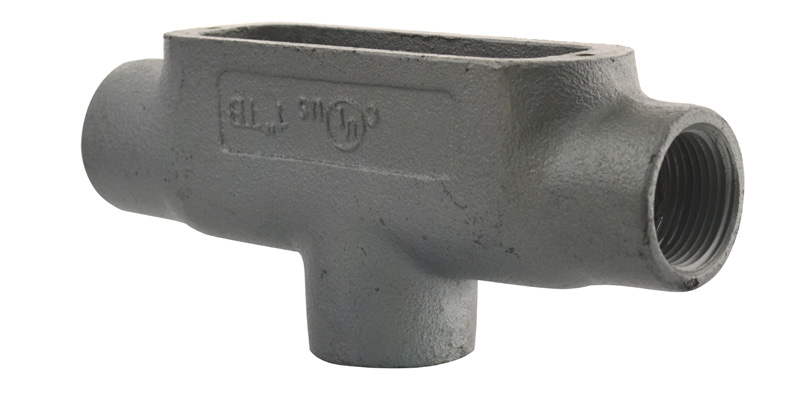

Malleable Iron Threaded Conduit Bodies

APPLICATION

To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

FEATURES

  • Tapered threaded hubs (NPT)
  •  Flat back design for easy mounting close to walls
  •  Suitable for use in concrete

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example T1G. For more information, see page 13.

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
TB1 1/2” 10 50 64011
TB2 3/4” 10 50 64012
TB3 1” 5 25 64013
TB4 1-1/4” - 10 64014
TB5 1-1/2” - 10 64015
TB6 2" - 5 64016
