RIGID-IMC FITTINGS

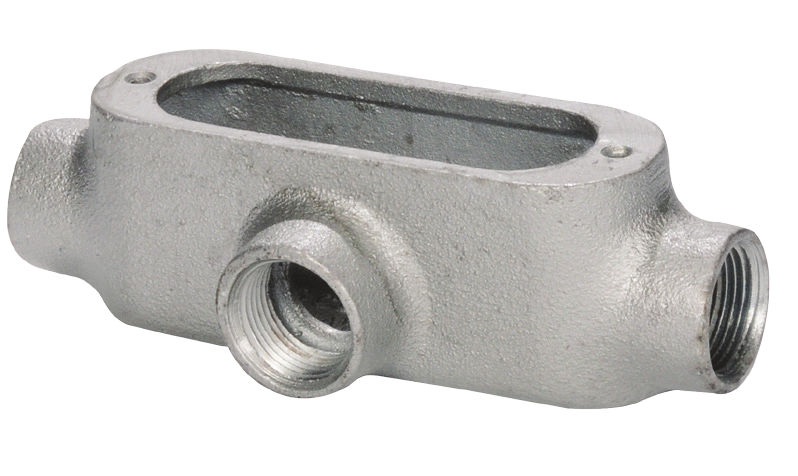

Malleable Iron Threaded Conduit Bodies

APPLICATION

To provide access to conductors for pulling,
splicing, and maintenance. Threaded for rigid
conduit and IMC.

FEATURES

  • Tapered threaded hubs (NPT)
  • Flat back design for easy mounting close to walls
  • Suitable for use in concrete

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example T1G. For more information, see page 13.

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
T1 1/2” 10 50 44011
T2 3/4” 10 50 44021
T3 1” 5 25 44031
T4 1-1/4” 10 44041
T5 1-1/2” 10 44051
T6 2” 5 44061
T7 2-1/2” 1 44071
T8 2-1/2” 1 44081
T9 3-1/2” 1 44091
T10 4” 1 44101
