RIGID-IMC FITTINGS

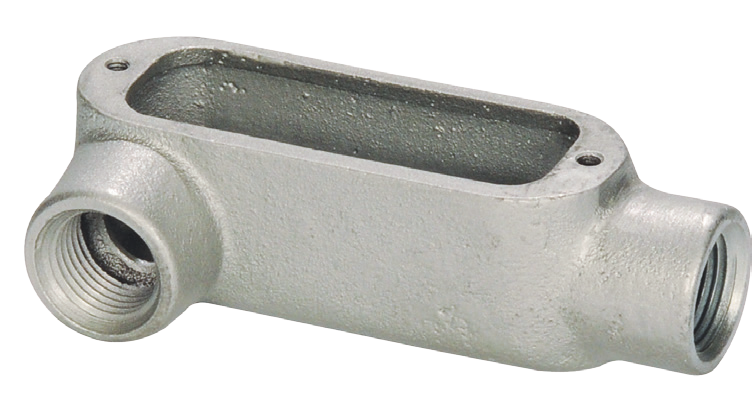

Malleable Iron Threaded Conduit Bodies

APPLICATION

To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

FEATURES

  • Tapered threaded hubs (NPT)
  • Flat back design for easy mounting close to walls
  • Suitable for use in concrete

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example LL1G. For more information, see page 12.

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
LR1 1/2” 10 50 42011
LR2 3/4” 10 50 42021
LR3 1” 5 25 42031
LR4 1-1/4” 10 42041
LR5 1-1/2” 10 42051
LR6 2” 5 42061
LR7 2-1/2” 1 42071
LR8 3” 1 42081
LR9 3-1/2” 1 42091
LR10 4” 1 42101
