RIGID-IMC FITTINGS

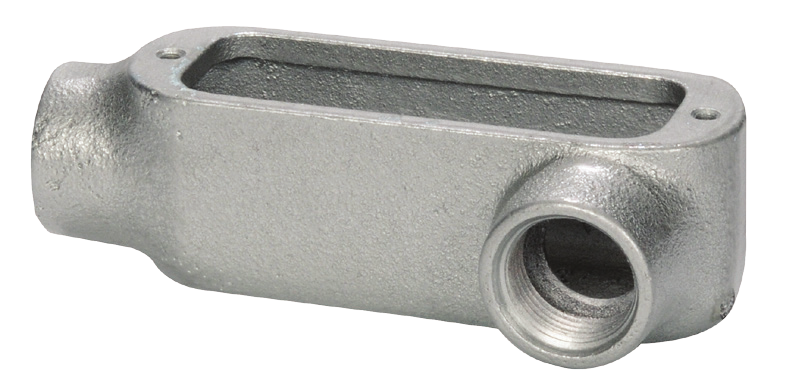

Malleable Iron Threaded Conduit Bodies

APPLICATION

To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

FEATURES

  • Tapered threaded hubs (NPT)
  • Flat back design for easy mounting close to walls
  • Suitable for use in concrete

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
LL1 1/2” 10 50 41011
LL2 3/4” 10 50 41021
LL3 1” 5 25 41031
LL4 1-1/4” 10 41041
LL5 1-1/2” 10 41051
LL6 2” 5 41061
LL7 2-1/2” 1 41071
LL8 3” 1 41081
LL9 3-1/2” 1 41091
LL10 4” 1 41101
