RIGID-IMC FITTINGS

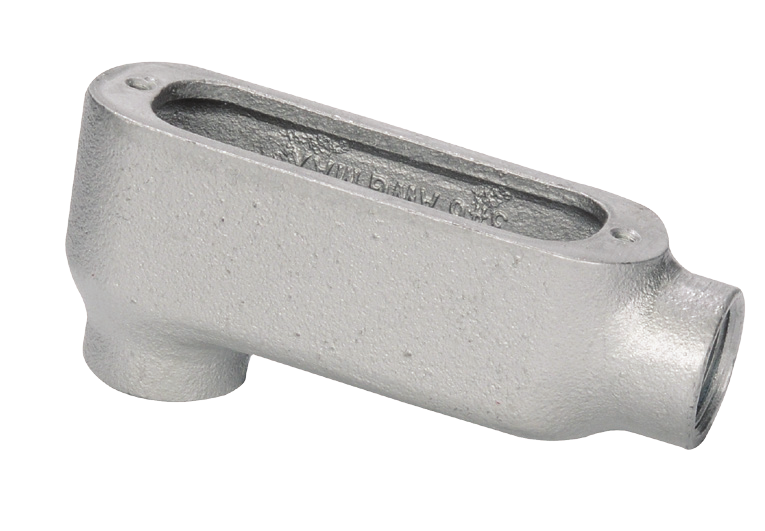

Malleable Iron Threaded Conduit Bodies

APPLICATION

To provide access to conductors for pulling splicing, and maintenance. Threaded for rigid conduit and IMC.

FEATURES

  • Tapered threaded hubs (NPT)
  • Flat back design for easy mounting close to walls
  • Suitable for use in concrete

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example LB1G. For more information, see page 11.

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
LB1 1/2” 10 50 40011
LB2 3/4” 10 50 40021
LB3 1” 5 25 40031
LB4 1-1/4” 10 40041
LB5 1-1/2” 10 40051
LB6 2” 5 40061
LB7 2-1/2” 1 40071
LB8 3” 1 40081
LB9 3-1/2” 1 40091
LB10 4” 1 40101
