RIGID-IMC FITTINGS

Malleable Iron Threaded Conduit Bodies

Back
image description
image description

C9

Trade Size 3-1/2”

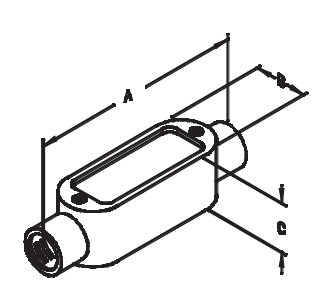

Dim A 18.125
Dim B 4.875
Dim C 5.625
MAX WIRE SIZE 3 #350 MCM
VOL. CU.IN. 300.00
Unit Pack
Master Pack 1
Lbs. / 100 Pcs. 2210
UPC 43090
Competitor Part Number 350-M, C-69, C350M, C350M, LCM-350, C-350, C97, C97, C350M, C9M

APPLICATION

To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

FEATURES

  • Tapered threaded hubs (NPT)
  • Flat back design for easy mounting close to walls
  • Suitable for use in concrete

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198259

ico

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example LB1G. For more information, see page 11.
