RIGID-IMC FITTINGS

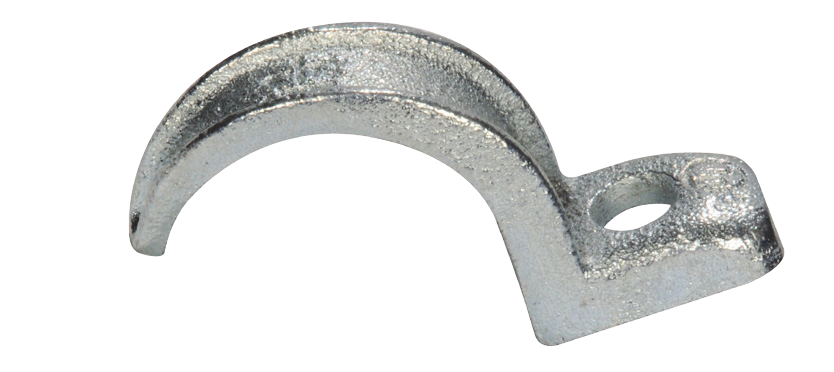

MALLEABLE IRON ONE-HOLE STRAPS

APPLICATION

Click-on type one-hole straps for rigid conduit or IMC. Provides support for the conduits, as required by the National Electrical Code.

FEATURES

  • Heavy Duty Casting

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198338

ico

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example 133G. For more information, see page 22.

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
132 1/2” 100 1000 81321
133 3/4” 100 1000 81331
134 1” 50 500 81341
135 1-1/4” - 100 81351
136 1-1/2” - 50 81361
137 2” - 50 81371
138 2-1/2” - 25 81381
139 3” - 10 81391
141 3-1/2” - 10 81411
148 4” - 10 81481
150 5” - 5 81501
152 6” - 5 81521
Download Specification Sheet
