RIGID-IMC FITTINGS

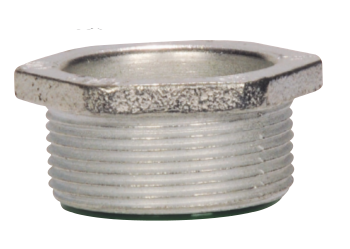

MALLEABLE IRON CONDUIT NIPPLES

APPLICATION

Used through knockout to connect box to conduit coupling. Used with a locknut to connect two boxes side by side or back to back. Used with a locknut to connect fixture housing to continuous runs.

FEATURES

  • Available with insulated Throat.
  • With rigid conduit threads (NPS)

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198258

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
90T 1/2” 100 1000 19003
91T 3/4” 100 1000 19103
92T 1” 50 500 19203
93T 1-1/4” 25 250 19303
94T 1-1/2” - 25 19403
95T 2” - 25 19503
96T 2-1/2” - 15 19603
97T 3” - 10 19703
98T 3-1/2” - 10 19803
99T 4” - 10 19903
995T 5” - 5 19953
996T 6” - 5 19963
