RIGID-IMC FITTINGS

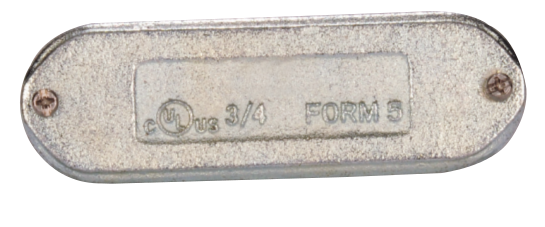

MALLEABLE IRON CONDUIT BODY COVERS

APPLICATION

Used with conduit bodies to cover opening.

FEATURES

  • Supplied with Stainless Steel captive screws
  • Sizes 21/2” thru 4” with raised dome affords additional wiring room

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc plated

UL LISTED

E198259

ico

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example 01MG. For more information, see page 13.

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
01M 1/2” 25 250 90131
02M 3/4” 25 250 90132
03M 1” 20 200 90133
04M 1-1/4” - 1-1/2” 25 100 90134
05M 2” - 25 90135
06M 2-1/2” - 3” - 10 90136
07M 3-1/2” - 4” - 10 90137
