RIGID-IMC FITTINGS

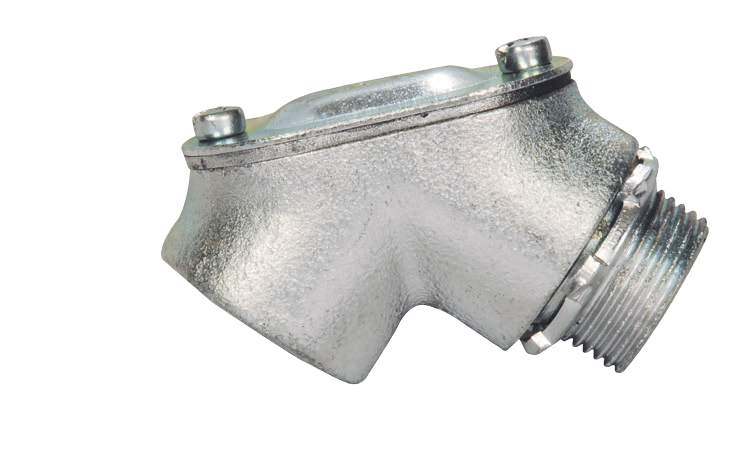

MALLEABLE IRON 90° PULL ELBOWS

APPLICATION

For connecting rigid conduit or IMC to box or enclosures to form 90° bend.

FEATURES

  • Raintight
  •  Furnished with Neoprene gasketed steel cover
  •  Furnished with steel locknut
  •  Threaded for rigid conduit and IMC (Female-NPT, Male-NPSM)

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198258

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
PEM50 1/2” 10 100 70887
PEM75 3/4” 5 50 70888
PEM100 1” - 25 70882
PEM125 1-1/4” - 20 70883
PEM150 1-1/2” - 10 90142
PEM200 2” - 5 90143
