LIQUIDTIGHT FITTINGS

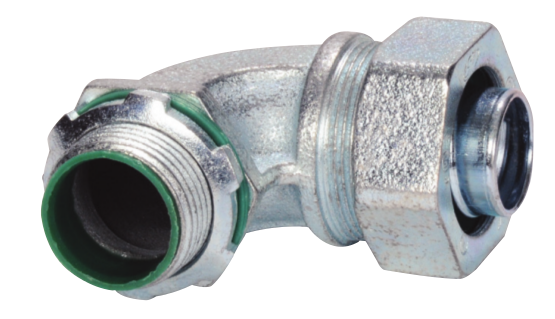

MALLEABLE IRON 90° LIQUIDTIGHT CONNECTORS

APPLICATION

To secure, ground seal Liquidtight Flexible Metal conduit, to boxes and enclosures

FEATURES

  • Tapered threaded male hub NPT Compact, slim diameter with small turning radius
  • Furnished with an insulated throat with steel locknut and sealing ring
  • Liquidtight/Raintight/Concrete tight/Oiltight
  • Suitable for wet locations
  • Long ferrule prevents pullout and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I

STANDARD MATERIALS

Malleable Iron/Steel Ferrule

STANDARD FINISH

Zinc Plated

UL LISTED

E198258

OPTIONAL FINISH

For additional corrosion protection, specify Mechanical Galvanized. Add suffix ‘MG’ to Malleable Iron catalog number. Example SLT35TMG. For more information, see page 17.

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
SLT25T 3/8” 10 100 14259
SLT35T 1/2” 10 100 14690
SLT36T 3/4” 10 100 14700
SLT37T 1” 5 50 14710
SLT38T 1-1/4” - 10 14389
SLT39T 1-1/2” - 10 14399
SLT40T 2” - 5 14409
SLT65T 2-1/2” - 1 14659
SLT66T 3” - 1 14669
SLT67T 3-1/2” - 1 14679
SLT68T 4” - 1 14689
