LIQUIDTIGHT FITTINGS

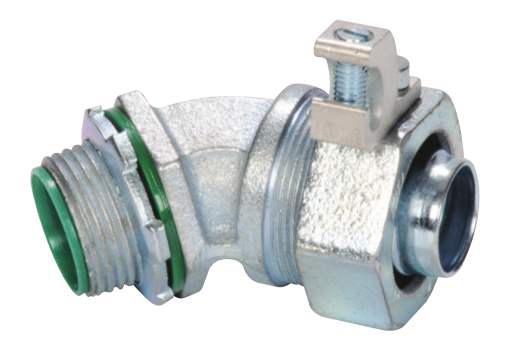

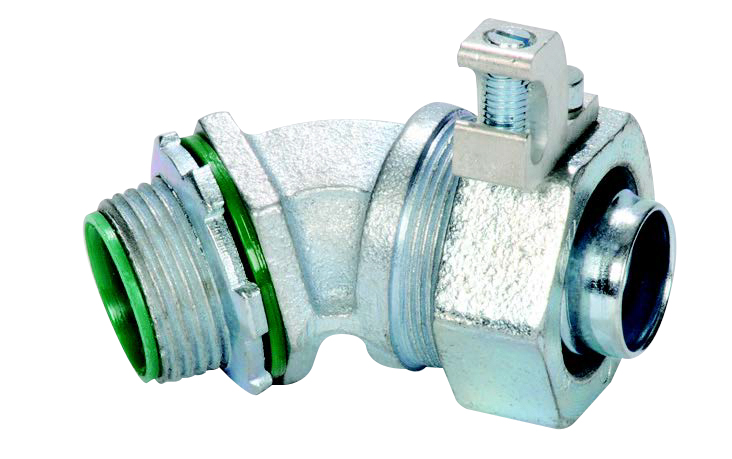

MALLEABLE IRON 45° LIQUIDTIGHT CONNECTORS WITH ALUMINUM LUGS

APPLICATION

Connects conduit and terminates bonding conductor run externally across liquidtight conduit

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius
    Furnished with Insulated throat, steel locknut, and sealing ring
  • Liquidtight/Raintight/Concrete tight/Oiltight
  • Suitable for grounding
  • Long ferrule prevents pull-out and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I.

STANDARD MATERIALS

Malleable Iron/Steel Ferrule/
Aluminum Grounding Lug

STANDARD FINISH

Zinc Plated

UL LISTED

E212551

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
SLT25-45ALT 3/8” 10 100 50024
SLT35-45ALT 1/2” 10 100 50025
SLT36-45ALT 3/4” 10 100 50026
SLT37-45ALT 1” 5 50 50027
SLT38-45ALT 1-1/4” - 10 50028
SLT39-45ALT 1-1/2” - 10 50029
SLT40-45ALT 2” - 5 50030
SLT65-45ALT 2-1/2” - 1 50031
SLT66-45ALT 3” - 1 50032
SLT67-45ALT 3-1/2” - 1 50033
SLT68-45ALT 4” - 1 50034
