LIQUIDTIGHT FITTINGS

SEPCO provides high-quality liquidtight fittings with our standard fast delivery and great service.

We offer straight, 90°and 45° liquid tight connectors with aluminum lugs or copper lugs. We also carry galvanized liquid tight fittings with copper lugs and zinc straight and 90°fittings.

MALLEABLE IRON 45° LIQUIDTIGHT CONNECTORS WITH COPPER LUGS

Back
image description
image description
image description

SLT37-45CLT

Trade Size 1”
Lug Size #4-#14
I.D. 0.980
O.D. 1.261

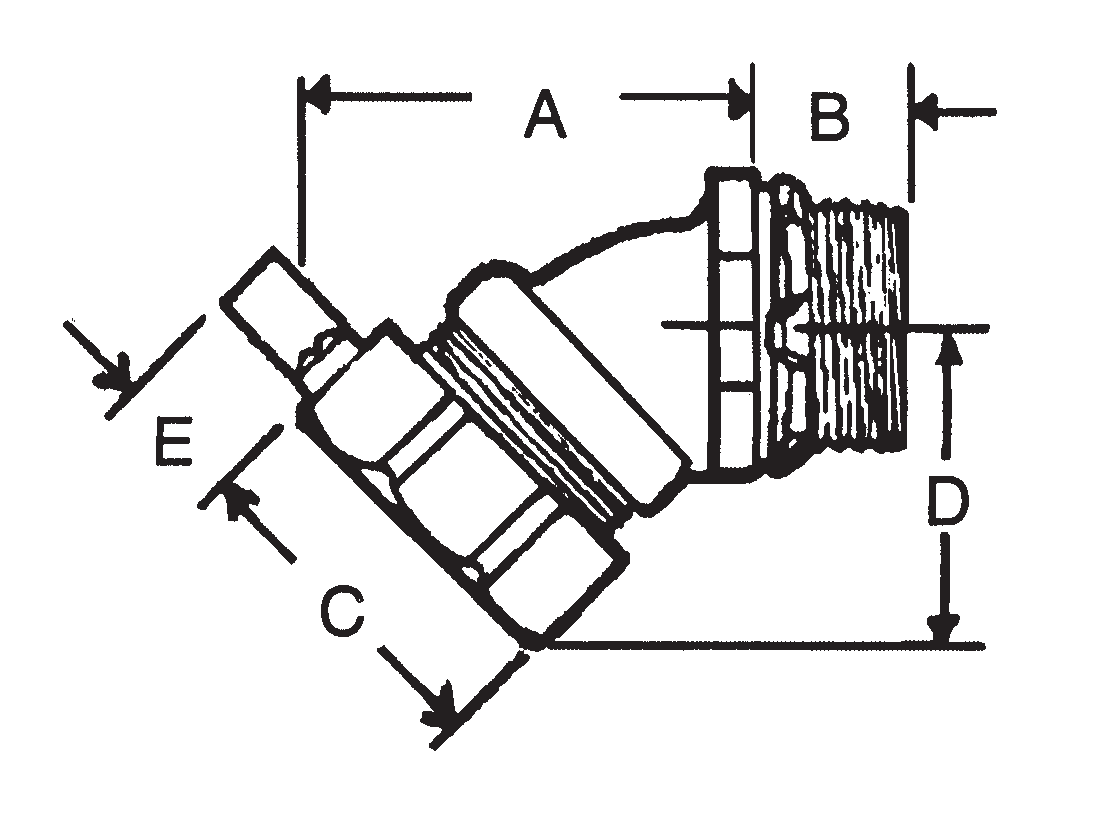

Dim A 2.16
Dim B 0.65
Dim C 1.80
Dim D 1.81
Dim E 0.75
Unit Pack 5
Master Pack 50
Lbs. / 100 Pcs. 42
UPC 50027
Competitor Part Number LTB10045GC

APPLICATION

Connects conduit and terminates bonding conductor run externally across liquidtight conduit.

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius

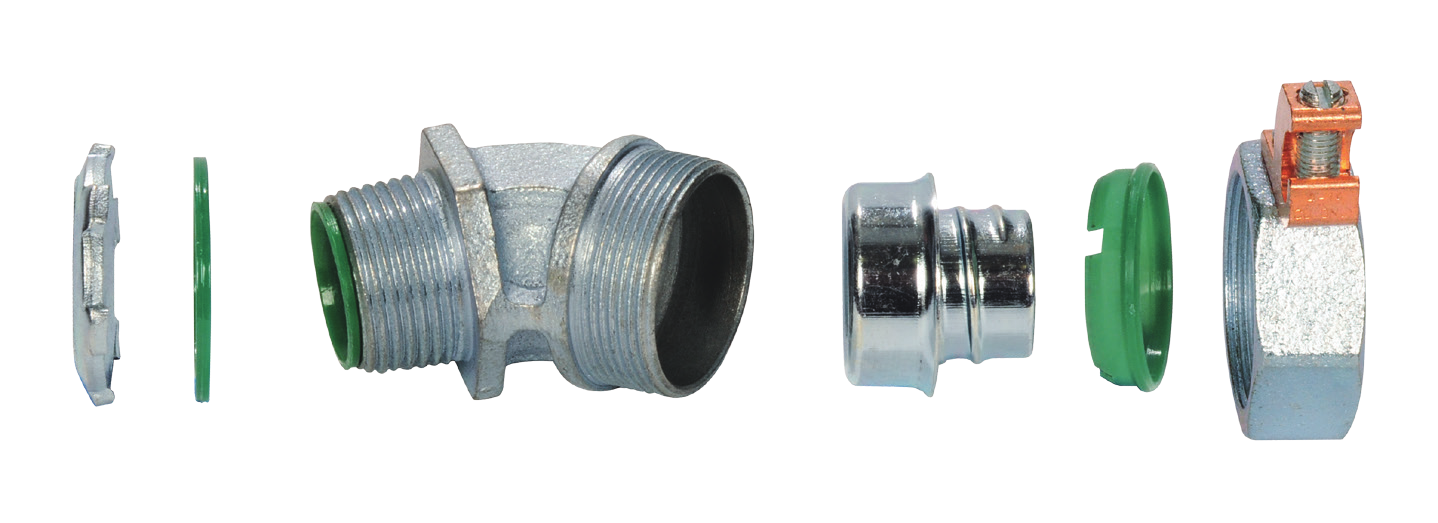

  • Furnished with Insulated throat, steel locknut,
    and sealing ring
  • Liquidtight/Raintight/Concrete tight/Oiltight
  • Suitable for grounding
  • Long ferrule prevents pull-out and tight bend
    conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings
    are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I.

STANDARD MATERIALS

Malleable Iron/Steel Ferrule/
Copper Grounding Lug

STANDARD FINISH

Zinc Plated/Natural

UL LISTED

E93683

OPTIONAL FINISH

For additional corrosion protection, specify Mechanical Galvanized. Add suffix ‘MG’ to Malleable Iron catalog number. Example SLT35-45CLTMG. For more information, see page 21.
