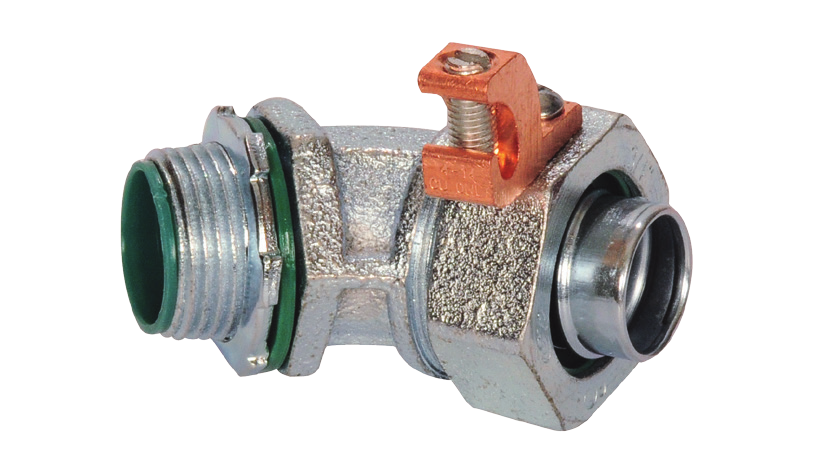

LIQUIDTIGHT FITTINGS

APPLICATION

Connects conduit and terminates bonding conductor run externally across liquidtight conduit.

FEATURES

• Tapered threaded male hub NPT
• Compact, slim diameter with small turning radius
• Furnished with Insulated throat, steel locknut,
  and sealing ring
• Liquidtight/Raintight/Concrete tight/Oiltight
• Suitable for grounding
• Long ferrule prevents pull-out and tight bend
  conduit “pop-out”
• UL Listed liquidtight flexible metal conduit fittings
  are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I.

STANDARD MATERIALS

Malleable Iron/Steel Ferrule/
Copper Grounding Lug

STANDARD FINISH

Zinc Plated/Natural

UL LISTED

E93683

OPTIONAL FINISH

For additional corrosion protection, specify Mechanical Galvanized. Add suffix ‘MG’ to Malleable Iron catalog number. Example SLT35-45CLTMG. For more information, see page 21.
