LIQUIDTIGHT FITTINGS

SEPCO provides high-quality liquidtight fittings with our standard fast delivery and great service.

We offer straight, 90°and 45° liquid tight connectors with aluminum lugs or copper lugs. We also carry galvanized liquid tight fittings with copper lugs and zinc straight and 90°fittings.

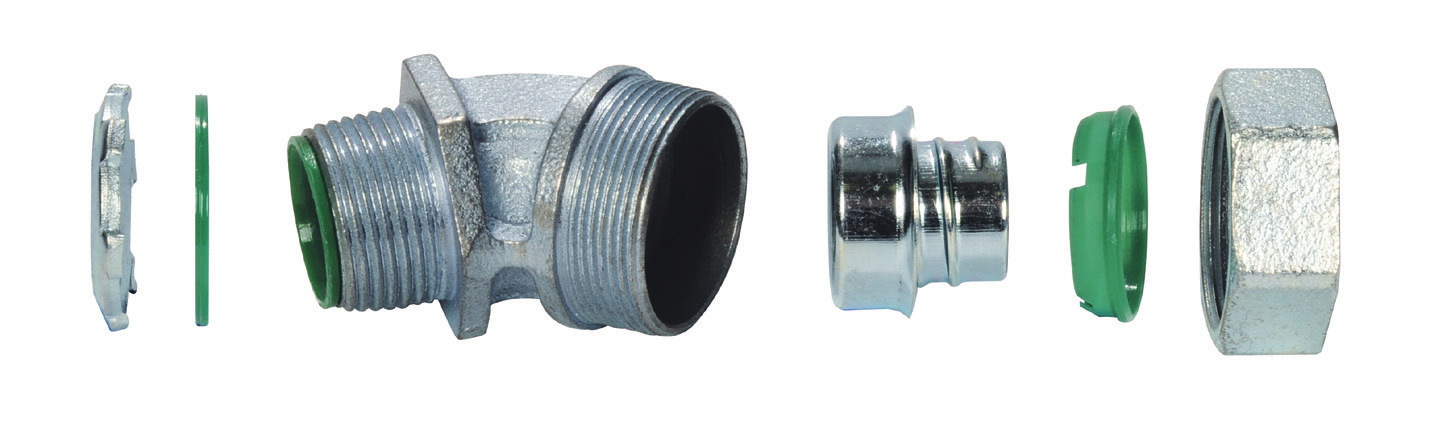

MALLEABLE IRON 45° LIQUIDTIGHT CONNECTORS

Back
image description
image description
image description

SLT25-45T

Trade Size 3/8”
KO SIZE 1/2”
I.D. 0.590
O.D. 0.793

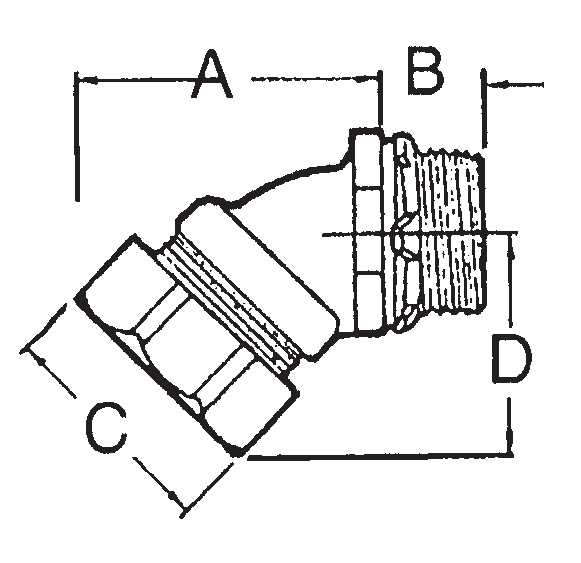

Dim A 1.14
Dim B 0.50
Dim C 1.15
Dim D 1.48
Unit Pack 10
Master Pack 100
Lbs. / 100 Pcs. 29
UPC 14825
Competitor Part Number TB-4538, 449-SLTI, LTB3845, 86503B, K03841, SL4538I, MSTR-3845-A, 4Q-438T, 3561, 3561, 5341, 230S

APPLICATION

To secure, ground and seal Liquidtight Flexible Metal conduit to boxes and enclosures.

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius Furnished with Insulated throat, steel locknut,
    and sealing ring
  • Liquidtight/Raintight/Concrete tight/Oiltight
  • Suitable for grounding
  • Long ferrule prevents pull-out and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I.

STANDARD MATERIALS

Malleable Iron/Steel Furrule

STANDARD FINISH

Zinc Plated

UL LISTED

E198258

OPTIONAL FINISH

For additional corrosion protection, specify Mechanical Galvanized. Add suffix ‘MG’ to Malleable Iron catalog number. Example SLT35- 45TMG. For more information, see page 18.
