LIQUIDTIGHT FITTINGS

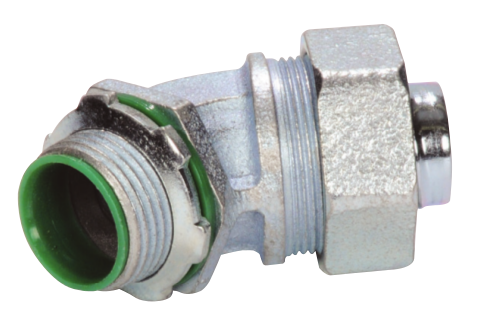

MALLEABLE IRON 45° LIQUIDTIGHT CONNECTORS

APPLICATION

To secure, ground and seal Liquidtight Flexible Metal conduit to boxes and enclosures.

FEATURES

  • Tapered threaded male hub NPT
  • Compact, slim diameter with small turning radius Furnished with Insulated throat, steel locknut,
    and sealing ring
  • Liquidtight/Raintight/Concrete tight/Oiltight
  • Suitable for grounding
  • Long ferrule prevents pull-out and tight bend conduit “pop-out”
  • UL Listed liquidtight flexible metal conduit fittings are suitable for use in the following Hazardous Locations under NEC 501-4(b), 502-4(a)(2); Class I, Div.2; Class II, Div. 1 and 2; and Class III, Div. 1 and 2 and are suitable for grounding in sizes 3/8” through 1-1/2” under NEC 35I-I.

STANDARD MATERIALS

Malleable Iron/Steel Furrule

STANDARD FINISH

Zinc Plated

UL LISTED

E198258

OPTIONAL FINISH

For additional corrosion protection, specify Mechanical Galvanized. Add suffix ‘MG’ to Malleable Iron catalog number. Example SLT35- 45TMG. For more information, see page 18.

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
SLT25-45T 3/8” 10 100 14825
SLT35-45T 1/2” 10 100 14835
SLT36-45T 3/4” 10 100 14836
SLT37-45T 1” 5 50 14837
SLT38-45T 1-1/4” - 10 14838
SLT39-45T 1-1/2” - 10 14839
SLT40-45T 2” - 5 14840
SLT65-45T 2-1/2” - 1 14865
SLT66-45T 3” - 1 14866
SLT67-45T 3-1/2” - 1 14867
SLT68-45T 4” - 1 14868
