GROUNDING FITTINGS

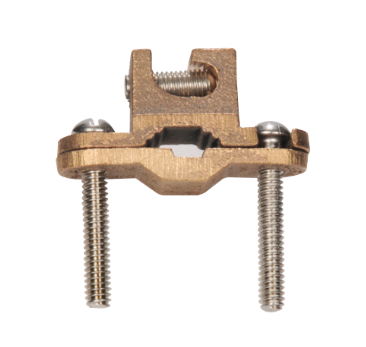

GROUND CLAMPS

APPLICATION

Integral cast, lay-in lug style direct burial ground clamps are for making connection with #10AWG solid to #2 AWG stranded copper wire to 1/2” to 1” ground water pipe or 3/8” to 1” rebar. Clamps meet both UL and NEC requirements for burial in earth or embedment in concrete. Typical installations include swimming pool and service grounding.

FEATURES

  • Combines FOUR clamps into ONE
  • It eliminates, rebar clamp, clamp with steel screws, clamp with brass screws, and direct burial clamp
  • Configure any job in 1/3 the time by presetting clamps with lay-in feature

STANDARD MATERIALS

Bronze Alloy with Stainless Steel Screws



UL LISTED

E93683
Listed for Direct Burial in Earth & Concrete

image description
Catalog Number Unit Pack Master Pack UPC
RBC-50 25 250 66101
