RIGID-IMC FITTINGS

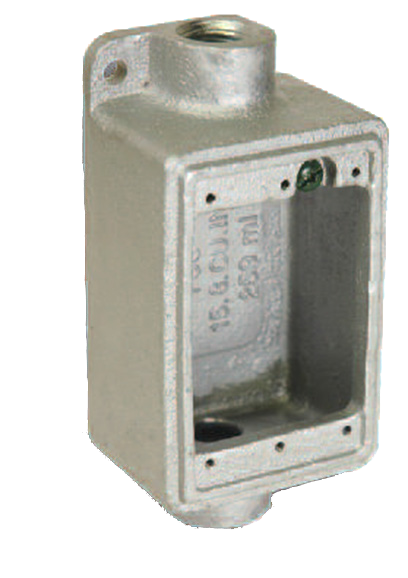

FS AND FD DEVICE BOXES – SINGLE GANG

APPLICATION

Accommodates wiring devices and provides opening to splice, tap or pull conductors.

FEATURES

  • Tapered threaded hubs (NPT) with integral
    bushing
  • Internal grounding screw
  • Suitable for use in wet locations when used with gasketed covers
  • Surface mounting lugs

STANDARD MATERIALS

Malleable Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198259

ico

OPTIONAL FINISH

For additional corrosion protection, specify Hot Dipped Galvanized. Add suffix ‘G’ to Malleable Iron catalog number. Example FD-50G. Please call factory for pricing and availability.

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
FSC-50 1/2” 1 5 90122
FSC-75 3/4” 1 5 90123
FSC-100 1” 1 5 90124
FDC-50 1/2” 1 5 90125
FDC-75 3/4” 1 5 90126
FDC-100 1” 1 5 90127
Download Specification Sheet
