RIGID-IMC FITTINGS

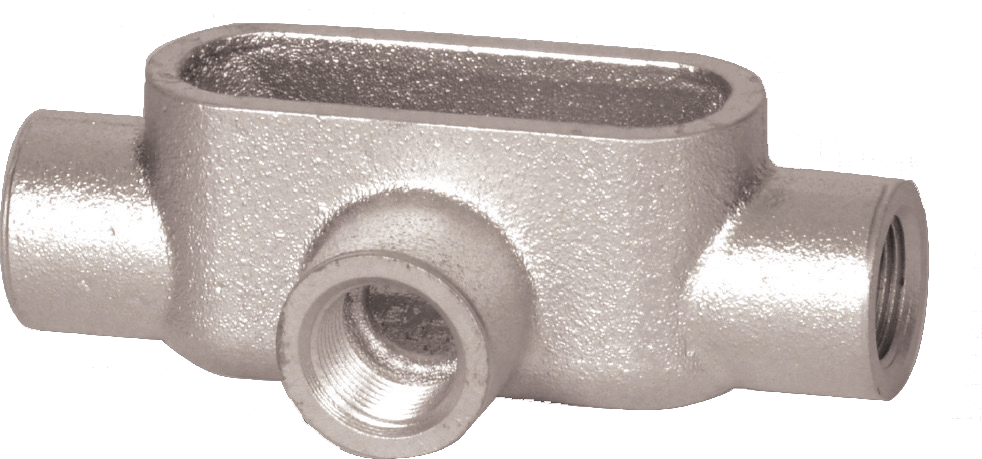

FORM 7 CONDUIT BODIES

APPLICATION

To provide access to conductors for pulling, splicing, maintenance and future changes / upgrades. Allows connection of straight conduit runs, branch conduit runs and 90° bends

FEATURES

  • Time saving Clip-On covers in steel or gray iron
  • Tapered threads hubs (NPT)
  • Flat back designs for greater wiring capacity and surface mounting
  • Complete interchangeability with other manufacturers Form 7 conduit bodies
  • Internal volume and maximum wire clearly marked on castings

STANDARD MATERIALS

Gray Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
T17F7 1/2” 5 50 10490
T27F7 3/4” 5 50 10491
T37F7 1” 5 25 10492
T47F7 1-1/4” 1 10 10493
T57F7 1-1/2” 1 10 10494
T67F7 2" 5 10495
T77F7 2-1/2” - 1 10496
T87F7 3” - 1 10497
T97F7 3-1/2” - 1 10498
T107F7 4” - 1 10499
