RIGID-IMC FITTINGS

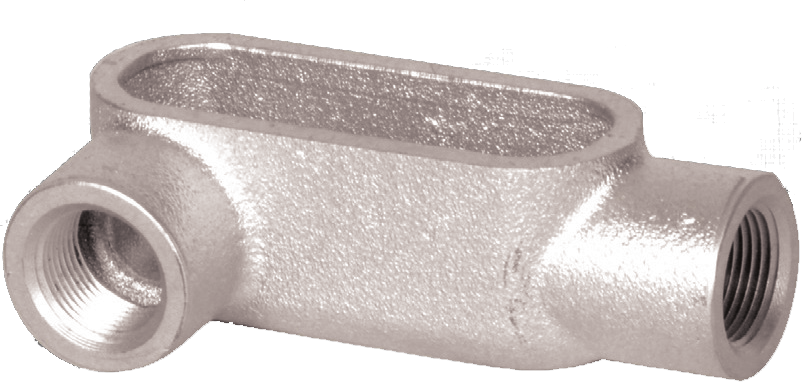

FORM 7 CONDUIT BODIES

APPLICATION

To provide access to conductors for pulling, splicing, maintenance and future changes / upgrades. Allows connection of straight conduit runs, branch conduit runs and 90° bends

FEATURES

  • Time saving Clip-On covers in steel or gray iron
  • Tapered threads hubs (NPT)
  • Flat back designs for greater wiring capacity and surface mounting
  • Complete interchangeability with other TYPE LL27F7 manufacturers Form 7 conduit bodies
  • Internal volume and maximum wire clearly marked on castings

STANDARD MATERIALS

Gray Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
LR17F7 1/2” 10 50 10470
LR27F7 3/4” 5 50 10471
LR37F7 1” 5 25 10472
LR47F7 1-1/4” 1 10 10473
LR57F7 1-1/2” 1 10 10474
LR67F7 2" 1 5 10475
LR77F7 2-1/2” - 1 10476
LR87F7 3” - 1 10477
LR97F7 3-1/2” - 1 10478
LR107F7 4” - 1 10479
