RIGID-IMC FITTINGS

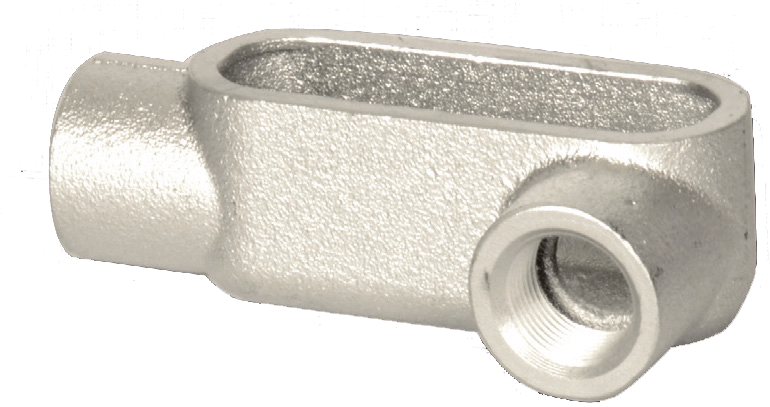

FORM 7 CONDUIT BODIES

APPLICATION

To provide access to conductors for pulling, splicing, maintenance and future changes / upgrades. Allows connection of straight conduit runs, branch conduit runs and 90° bends

FEATURES

  • Time saving Clip-On covers in steel or gray iron
  • Tapered threads hubs (NPT)
  • Flat back designs for greater wiring capacity and surface mounting
  • Complete interchangeability with other TYPE LL27F7 manufacturers Form 7 conduit bodies
  • Internal volume and maximum wire clearly marked on castings

STANDARD MATERIALS

Gray Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
LL17F7 1/2” 10 50 10460
LL27F7 3/4” 5 50 10461
LL37F7 1” 5 25 10462
LL47F7 1-1/4” 1 10 10463
LL57F7 1-1/2” 1 10 10464
LL67F7 2" 1 5 10465
LL77F7 2-1/2” - 1 10465
LL87F7 3” - 1 10467
LL97F7 3-1/2” - 1 10468
LL107F7 4” - 1 10469
