RIGID-IMC FITTINGS

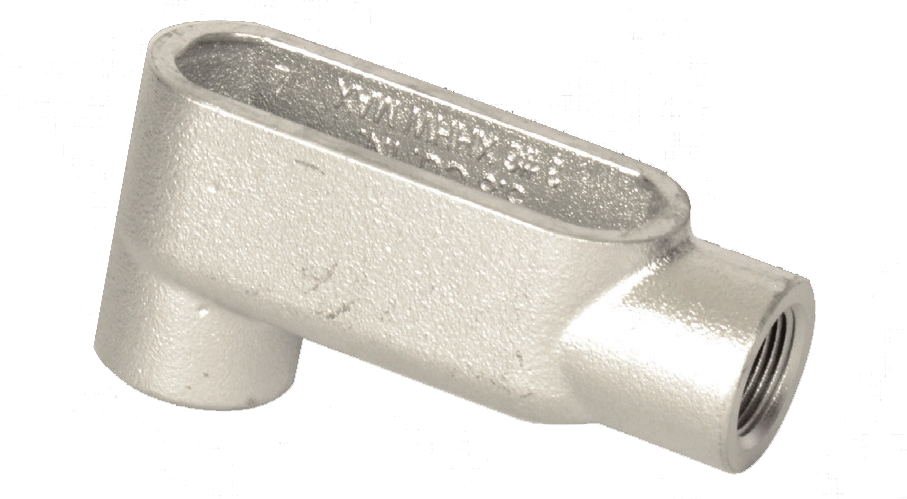

FORM 7 CONDUIT BODIES

APPLICATION

To provide access to conductors for pulling, splicing, maintenance and future changes / upgrades. Allows connection of straight conduit runs, branch conduit runs and 90° bends

FEATURES

  • Time saving Clip-On covers in steel or gray iron
  • Tapered threads hubs (NPT)
  • Flat back designs for greater wiring capacity and surface mounting
  • Complete interchangeability with other manufacturers Form 7 conduit bodies
  • Internal volume and maximum wire clearly marked on castings

STANDARD MATERIALS

Gray Iron

STANDARD FINISH

Zinc Plated

UL LISTED

E198259

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
LB17F7 1/2” 10 50 10450
LB27F7 3/4” 5 50 10451
LB37F7 1” 5 25 10452
LB47F7 1-1/4” 1 10 10453
LB57F7 1-1/2” 1 10 10454
LB67F7 2" 1 5 10455
LB77F7 2-1/2” - 1 10456
LB87F7 3” - 1 10457
LB97F7 3-1/2” - 1 10458
LB107F7 4” - 1 10459
Download Specification Sheet
