RIGID-IMC FITTINGS

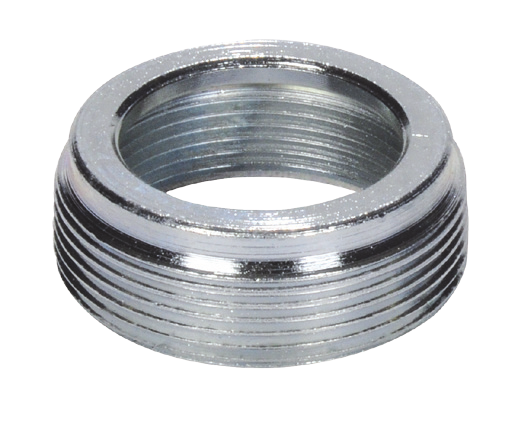

CONDUIT REDUCER BUSHINGS

APPLICATION

To reduce the trade size of a tapered entry on a conduit fitting.

FEATURES

  • Threaded for rigid conduit and IMC.
  • Made with rolled edge, protects wire insulation.

STANDARD MATERIALS

Steel

STANDARD FINISH

Zinc Plated

UL LISTED

E198258

ico

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
CR0 1/2” x 3/8” - 200 80007
CR1 3/4” x 1/2” - 200 80017
CR2 1” x 1/2” - 100 80027
CR3 1” x 3/4” - 100 80037
CR4 1-1/4” x 1/2” - 50 80047
CR5 1-1/4” x 3/4” - 50 80057
CR6 1-1/4” x 1” - 50 80067
CR7 1-1/2” x 1/2” - 50 80077
CR8 1-1/2” x 3/4” - 50 80087
CR9 1-1/2” x 1” - 50 80097
CR10 1-1/2” x 1-1/4” - 50 80107
CR11 2” x 1/2” - 25 80117
CR12 2” x 3/4” - 25 80127
CR13 2” x 1” - 25 80137
CR14 2” x 1-1/4” - 25 80147
CR15 2” x 1-1/2” - 25 80157
CR18 2-1/2” x 1” - 10 80187
CR19 2-1/2” x 1-1/4” - 10 80197
CR20 2-1/2” x 1-1/2” - 10 80207
CR21 2-1/2” x 2” - 10 80217
CR24 3” x 1” - 10 80247
CR25 3” x 1-1/4” - 10 80257
CR26 3” x 1-1/2” - 10 80267
CR27 3” x 2” - 10 80277
CR28 3” x 2-1/2” - 10 80287
CR34 3-1/2” x 2” - 5 80347
CR35 3-1/2” x 2-1/2” - 5 80357
CR36 3-1/2” x 3” - 5 80367
CR42 4” x 2” - 5 80427
CR43 4” x 2-1/2” - 5 80437
CR44 4” x 3” - 5 80447
CR45 4” x 3-1/2” - 5 80457
CR46 5” x 4” - 5 80467
CR47 6” x 5” - 5 80468
