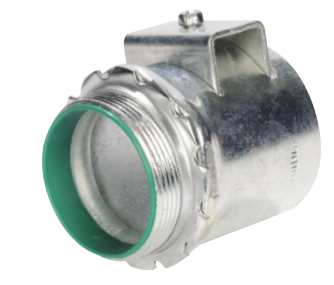

AC-MC-FLEX FITTINGS

BIG BITE-SADDLE TYPE CONNECTORS WITH INSULATED THROAT

APPLICATION

To connect Flex, AC and MC cables to a box or an enclosure.

FEATURES

  • One piece tubular construction affording extra strength
  • Dual gripping saddle clamps
  • Saddle clamp rides up & down on screw for ease of installation
  • Robertson Head Screws
  • Furnished with Insulated Throat

STANDARD MATERIALS

Tubular Steel/Steel Locknut

STANDARD FINISH

Zinc Plated

UL LISTED

E309514
3/8” thru 1”
E198258
1 1/4” thru 4”

image description
Catalog Number Trade Size Unit Pack Master Pack UPC
*DB38-IC 3/8” 50 500 31800
*DB50-IC 1/2” 25 100 31801
*DB75-IC 3/4” 10 100 31802
*DB100-IC 1” 5 50 31803
DB125-IC 1-1/4” 5 10 31804
DB150-IC 1-1/2” 5 10 31805
DB200-IC 2” 5 10 31806
DB250-IC 2-1/2” 1 5 31807
DB300-IC 3” 1 5 31808
DB350-IC 3-1/2” - 1 31809
DB400-IC4” 4” - 1 31810
