AC-MC-FLEX FITTINGS

SEPCO CARRIES A LARGE INVENTORY OF AC-MC-FLEX FITTINGS!

Including big bite-saddle type connectors and couplings, quicklock type connectors, and malleable iron or zinc cable connectors. We also offer zinc two screw take-all connectors. Get what you need with SEPCO’s unparalleled service and delivery.

BIG BITE-SADDLE TYPE COMBINATION COUPLINGS

Back
image description
image description

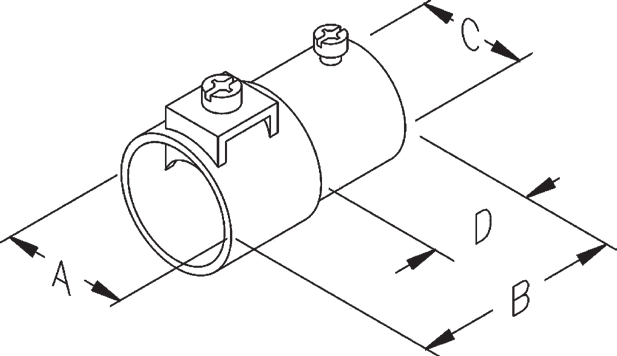

DBS-75

Trade Size 3/4”
Dim A 1.250
Dim B 2.125
Dim C 1.125
Dim D 0.813
Unit Pack 10
Master Pack 100
Lbs. / 100 Pcs. 20
UPC 90130
Competitor Part Number ACCSS75, MDBS-75, 441, 422TBS

APPLICATION

To connect Flex, AC, and MCI cables to EMT Conduit.

FEATURES

  • One piece tubular construction affording extra strength
  • Dual gripping saddle clamps
  • Saddle clamp rides up & down on screw for ease of installation
  • Robertson Head Screws

STANDARD MATERIALS

Tubular Steel

STANDARD FINISH

Zinc Plated

UL LISTED

1/2” thru 3/4”
E198258
